분쇄/파쇄용장비
(Milling & Grinding Equipment)
엠제이리서치의 새로운 홈페이지
www.mjr.co.kr 바로가기

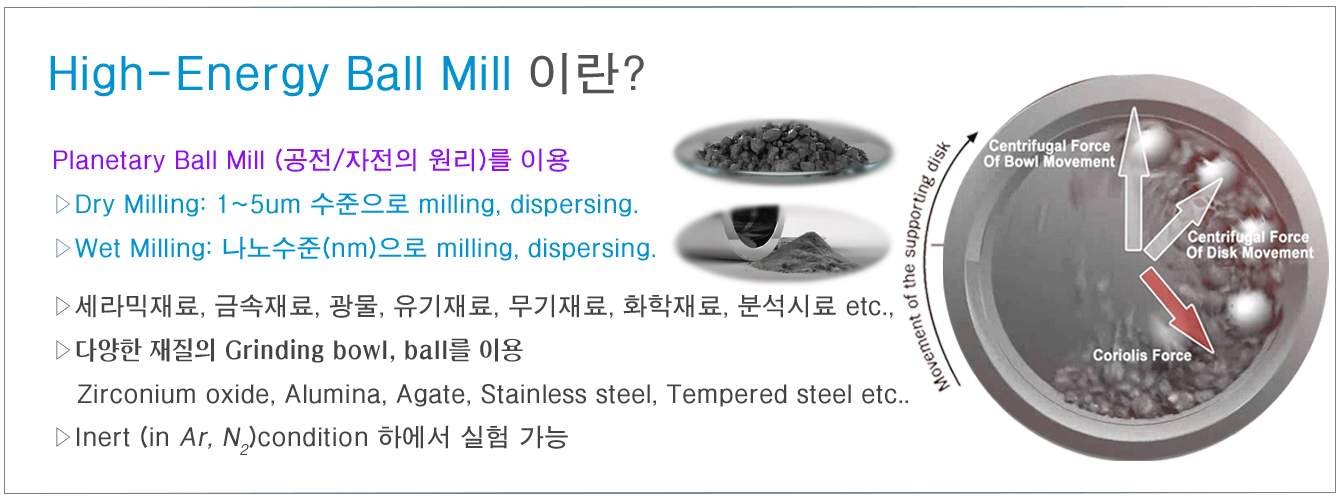

PLANETARY BALL MILL
[제조사 : FRITSCH, Germany]

 돌아가기


  Classic line

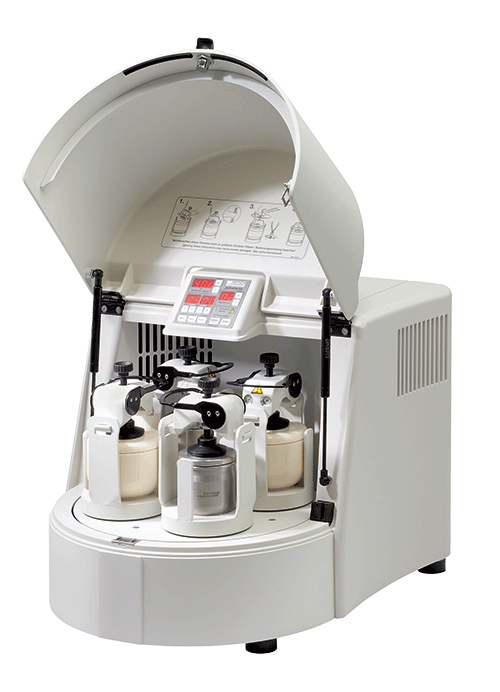

FRITSCH PULVERISETTE 5 Planetary Mill - 4 station

- Working station: 4
- Max. Sample quantity: 900 ml
- Rotational speed of main disk: 50 ~ 400 rpm,
- Max. Centrifugal force: 22 g

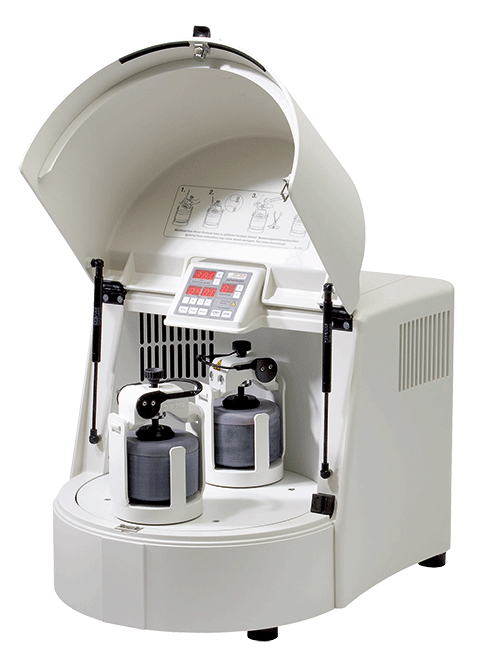

FRITSCH PULVERISETTE 5 Planetary Mill - 2 station

- Working station: 2
- Max. Sample quantity: 450 ml
- Rotational speed of main disk: 50 ~ 400 rpm,
- Max. Centrifugal force: 22 g

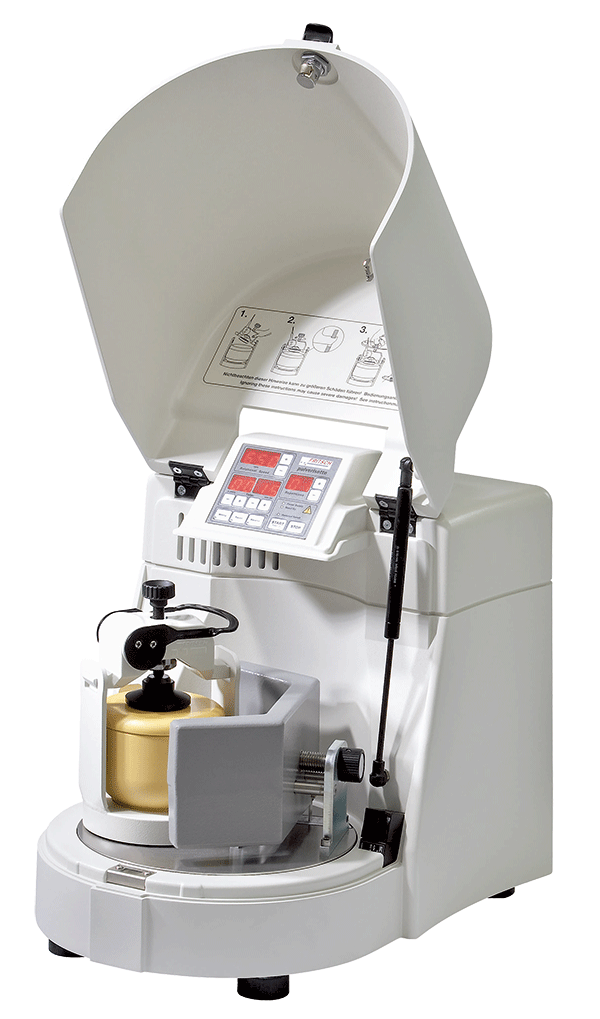

FRITSCH PULVERISETTE 6 Planetary Mono Mill

- Working station: 1
- Max. Sample quantity: 225 ml
- Rotational speed of main disk: 100 ~ 650 rpm,
- Max. Centrifugal force: 29 g

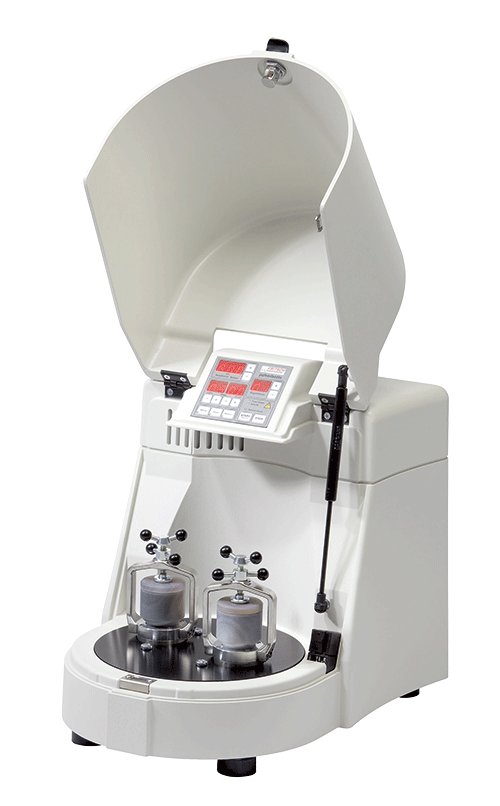

FRITSCH PULVERISETTE 7 Planetary Micro Mill

- Working station: 2
- Max. Sample quantity: 40 ml
- Rotational speed of main disk: 100 ~ 800 rpm,
- Max. Centrifugal force: 50 g

  Premium line

FRITSCH PULVERISETTE 5 Planetary Mill

- Working station: 2
- Max. Sample quantity: 450 ml
- Rotational speed of main disk: 100 ~ 800 rpm,
- Max. Centrifugal force: 64 g

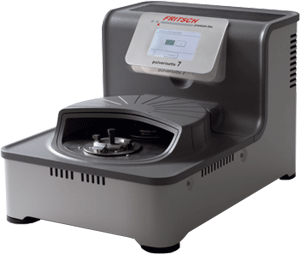

FRITSCH PULVERISETTE 7 Planetary Micro Mill

- Working station: 2
- Max. Sample quantity: 70 ml
- Rotational speed of main disk: 100 ~ 1,100 rpm,
- Max. Centrifugal force: 95 g


제품 동영상 동영상 자료실 가기
Planetary Ball Mill - Classic line
Planetary Ball Mill - Premium line
