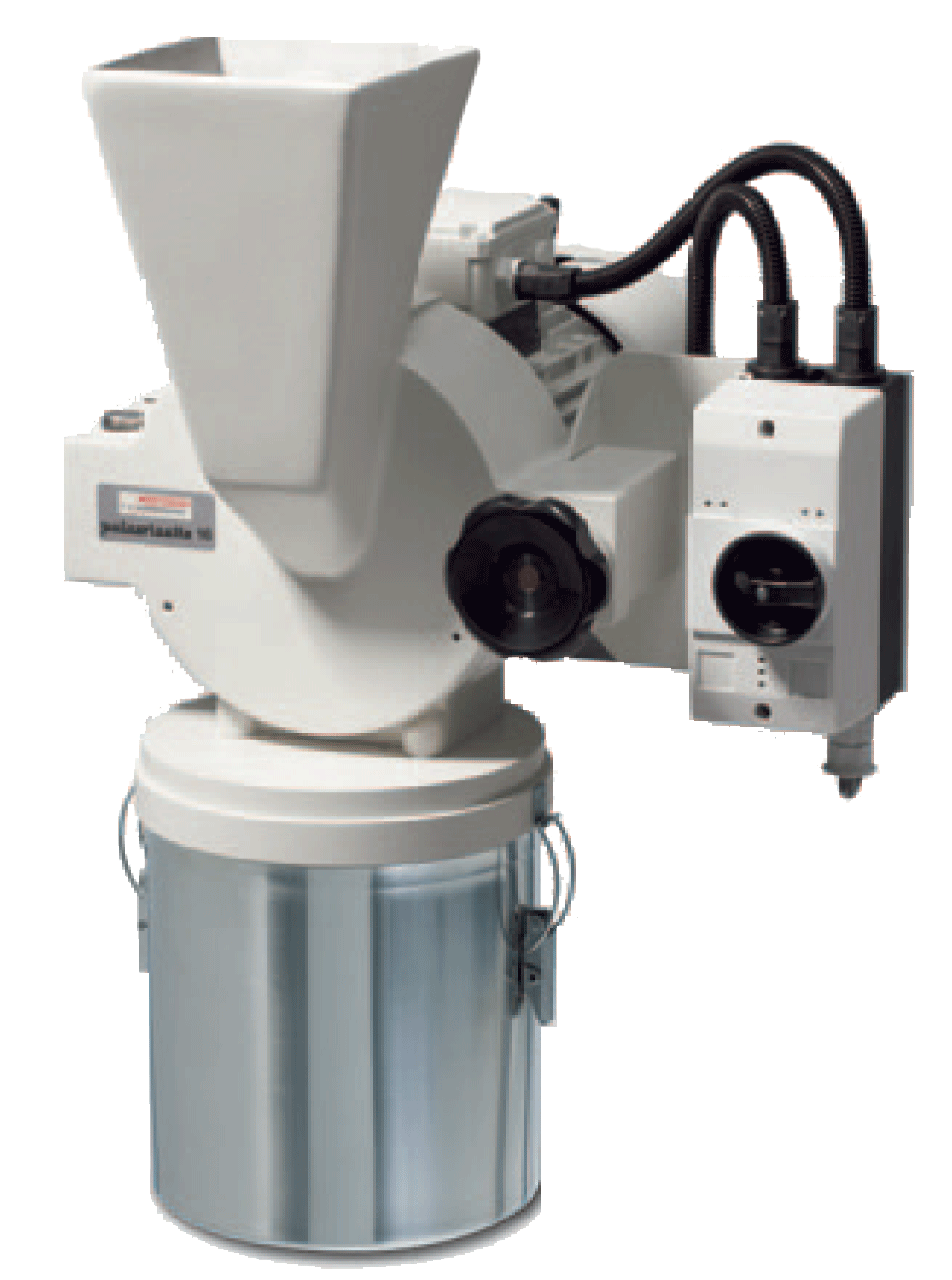

PULVERISETTE 16 Beater Mill   Sieve

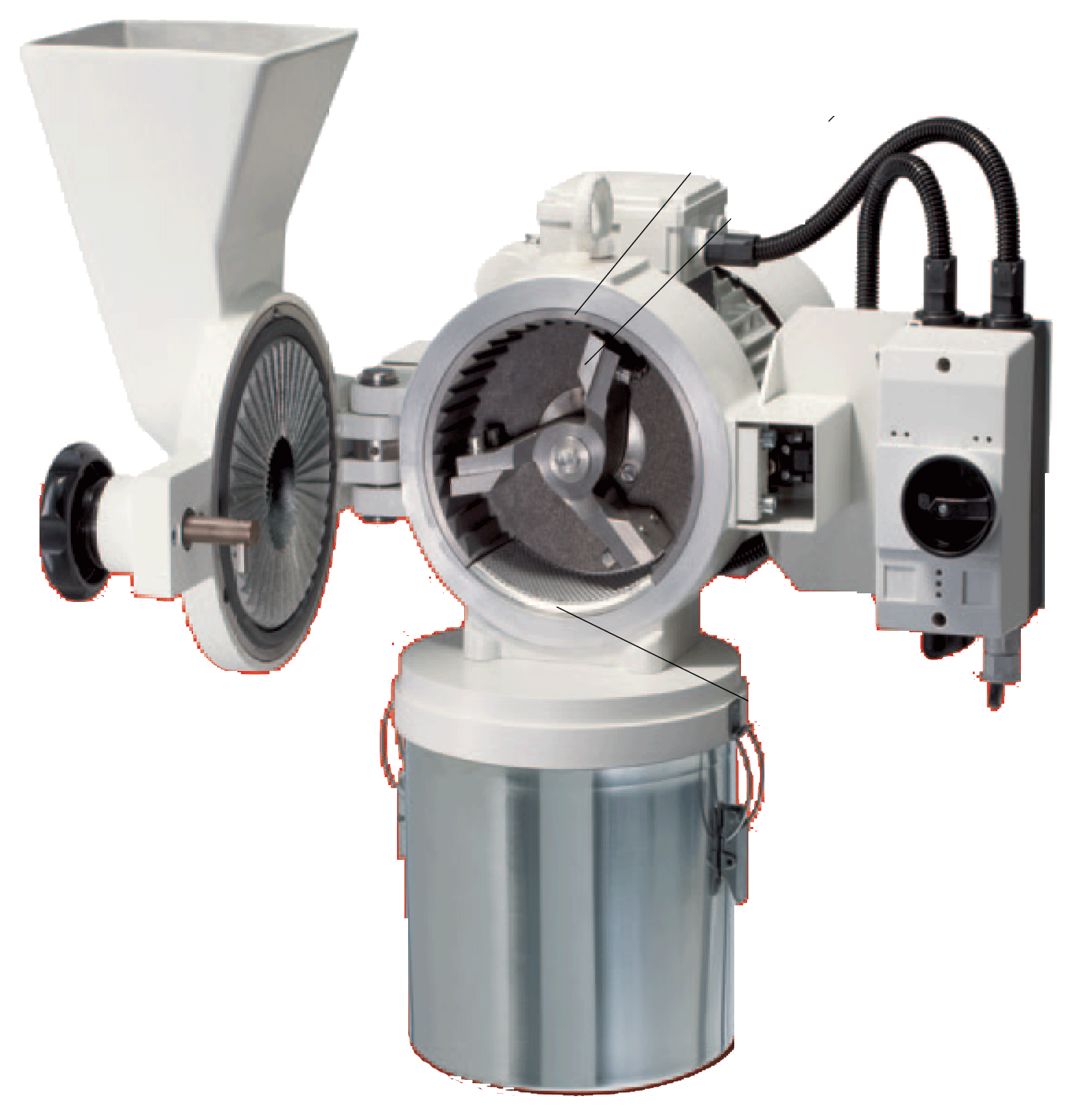

[Ordering Information] Cat. # 제 품 명   16.3020.00 PULVERISETTE 16 Cross Beater Mill - Cast Iron 견적요청 16.3070.00 PULVERISETTE 16 Cross Beater Mill - Stainless Steel 견적요청 독일 Fritsch 제품의 Cross Beater Mill Pre-crushing 용으로 적합한 Beater mill [주요 기능] Chamber 내부에서 고속회전하는 Beater와 sample 간의 impact에 의한 milling - Max. rpm : 2,800 rpm - Cross beater 와 grinding insert 사이에서 sample milling Grinding insert 재질 선택 - Cast iron - Stainless steel 하부에 있는 Botton Sieve에 의해서 sample 입도 조절 - 최소 100 um 수준까지 Grinding 가능 - 0.12 mm, 0.2 mm, 0.25 mm, 0.5 mm, 1 mm, 1.5 mm - 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm Collecting vessel: 5 L or 30 L Mohs hardness 6 정도 sample까지 처리가능 Max. feeding size: 20 mm 까지 가능 연속 처리 : 최대 80 L / hr Table mounting or stand

[Application]
Agriculture and forestry	Grain, peat, seeds, dried plants, feed, pellets
Geology and mineralogy	Salts, gypsum, potash, minerals, stones and soil, bauxite, limestone, dry clay, pyrite, cement clinker, refractory materials
Mining and metallurgy	Coal, coke, ores, slate, slag
Ceramics	Oxide ceramics
Plastics and textiles	Resins, cellulose, synthetic resins

[Accessories]

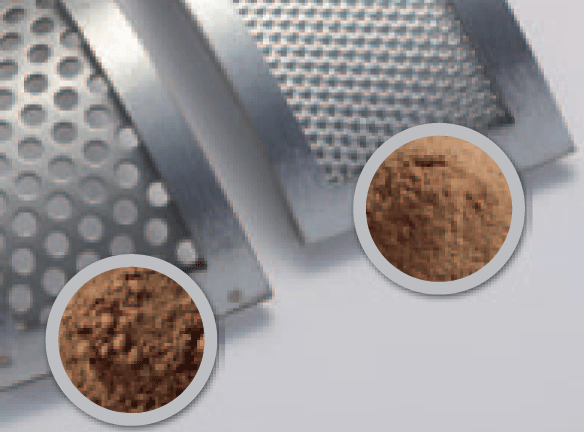

	Botton Sieve

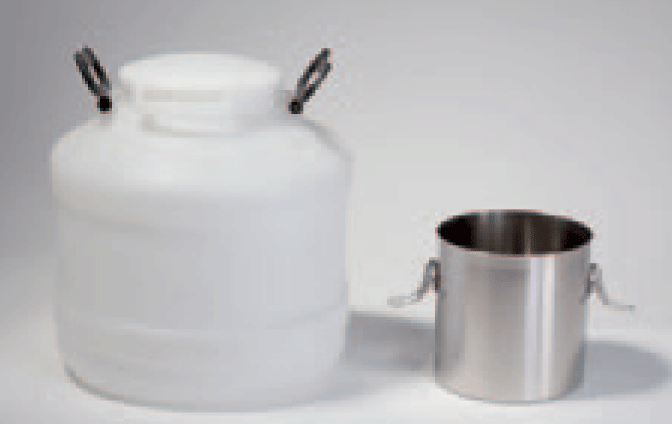

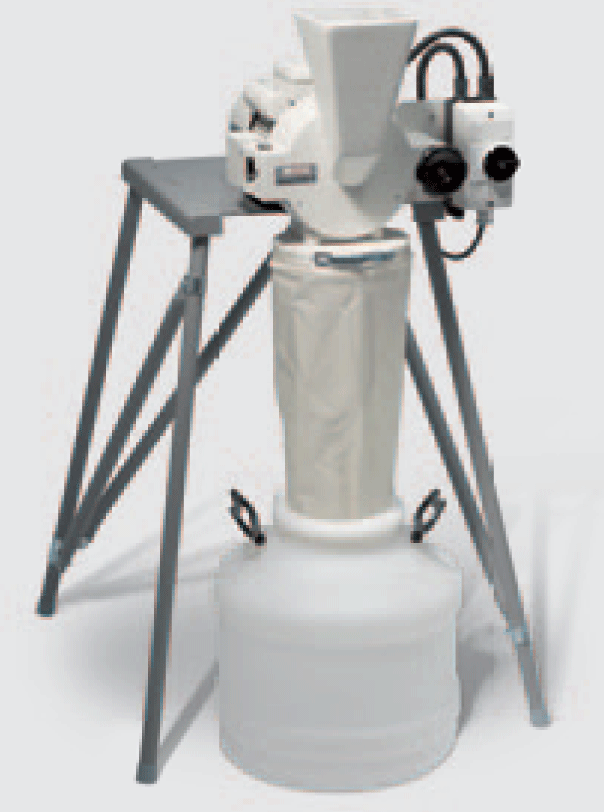

Support Stand	Collecting Vessel: 30 L, 5 L

[장비특징]
1.	Max. feed size 20 mm, fi nal fi neness 0.12 - 10 mm
2.	Ideal for comminution of coal, coke, lime or slate
3.	Ideal for fast work with high throughput of up to 80 l/h
4.	Easy-to-change bottom sieve
5.	Easy cleaning
6.	Min. sample quantity 30 - 40 ml
7.	Batch or continuous operation possible
8.	Useable as a table-mounted or free-standing instrument with support stand (ordered separately)
9.	1.1 kW brake motor, 2,850 rpm with maintenance-free direct drive
10.	Overload protection
11.	Toothed grinding tools made of cast iron or stainless steel
12.	Collection vessel made of stainless steel in 2 sizes (5 l and 30 l)
13.	Trapezoidal and round per foration bottom sieves made of stainless steel in various sizes
14.	Housing made of cast aluminium
15.	Easy assembly

[SPECIFICATION]
Technical Data	PULVERISETTE 16 Cross Beater Mill
Working principle	Impact force
Optimal for material type	Medium-hard, brittle
Max. feed size	20 mm
Min. sample quantity	30 ~ 40 ml
Max. throughput	80 L / h
Sieve inserts	0.12 ~ 10 mm
Feeding	Batchwise / continuous
Grinding part	Cross beater
Materials of the grinding part	Cast iron, stainless steel
Motor speed	2,850 rpm
Electrical details	230V / 1~, 50 ~ 60 Hz, 1,590 watt
Motor shaft power	1.1 kW
Weight	38 kg
Dimensions (W x D x H)	420 x 450 x 560 mm
