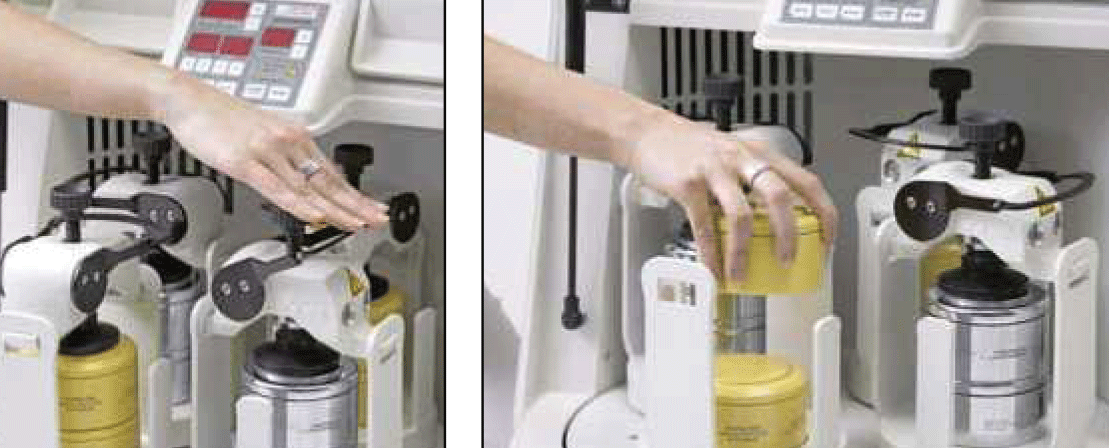

PULVERISETTE 5 with 4 Grinding Bowl Fasteners PULVERISETTE 5 with 2 Grinding Bowl Fasteners Safe-Lock System Grinding Bowl Grinding Ball

[Ordering Information] Cat. # 제 품 명   05.5000.00 PULVERISETTE 5 with 4 Grinding Bowl Fasteners 견적요청 05.6000.00 PULVERISETTE 5 with 2 Grinding Bowl Fasteners 견적요청 독일 Fritsch 제품의 공전/자전형 Ball Mill 건식/습식 샘플 모두 가능하며, 최종 입도 1 um 이하로 샘플처리 가능 세라믹, 금속, 화학, 광물, 분석시료 등 의 전처리 장비로 매우 유용   [Planetary Ball Mill 원리보기]     [주요 기능] 다양한 type의 sample 처리 - Hard, medium-hard, soft, brittle, tough, moist 최대 4개의 Grinding Bowl 를 동시에 처리 (4-stations) 최대 2개의 Grinding Bowl 를 동시에 처리 (2-stations) 동시에 8개 Sample 까지 처리 가능 80 ml, 250 ml, 500 ml의 3종류의 Grinding Bowl 사용 다양한 재질의 Grinding Bowl 사용 - Agate - Sintered corundum (99.7% Al2O3) - Silicon nitride, with steel casing - Zirconium oxide - Stainless steel - Tempered steel - Hardmetal tungsten carbide, with steel casing 다양한 크기 및 재질의 Grinding Ball 사용 - 40 mm, 30 mm, 20 mm, 15 mm, 10 mm, 5 mm - 3 mm, 2 mm, 1.5 mm, 1 mm, 0.5 mm 최대 Sample 처리량: 900 ml (only 4-stations) - 4 x 225 ml 최대 Sample 처리량: 450 ml (only 2-stations) - 2 x 225 ml 최소 Sample 처리량: 10 ml Max. feeding size: 10 mm Inert gas 충진 상태에서 grinding 가능: 산화방지 Planetary disk 와 Grinding bowl 사이의 회전 비율 - 1 : -2.19 - Planetary disk 공전 Speed range: 50 ~ 400 rpm - Grinding Bowl 자전 Speed range: Disk 공전속도   대비 x -2.19 의 비율로 회전

제품 동영상	동영상 자료실 가기
Planetary Ball Mill - Classic line
Planetary Ball Mill - Premium line

[Application]
Geology and mineralogy	Rock, gravel, sand, minerals
Ceramics	Porcelain, sintered ceramics, clay, firelay
Chemistry	Pesticides, fertilisers, salts, inorganic and organic materials
Biology	Plants, leaves, freeze-dried samples
Pharmaceuticals	Ophthalmological agents, gels, creams, extracts, drugs  Pastes, dragees, tablets
Metallurgy	Ores, sinters
Material technology	Pigments, precious materials, new materials,  alloys, mechanical alloying and activating
Analysis preparation	Spectroscopy, X-ray fluorescence,  X-ray structure analysis, chromatography

[장비특징]
1.	Toothed belt drive for bowls provides constant transmission ratio
2.	Rotational speed regulated by microprocessor
3.	Digital display of the actual rotational speed of the supporting disk
4.	Programmable grinding and break times and grinding sequence   - for short-time operation adjustable down to the second
5.	Smaller grinding bowls also possible with an adapter
6.	RS232 interface for transmission of process parameters (validation)
7.	Overload protection with automatic rotational speed adjustment and display
8.	Maintenance-free drive due to electronically regulated rotary current motor (1.5 kW)   with frequency converter and permanently lubricated bearings
9.	Grinding chamber hood safety lock with stoppage monitoring
10.	Membrane keyboard
11.	Robust housing of impact-resistant plastic
12.	Grinding chamber with forced air ventilation
13.	Gas pressured springs for easy opening of the cover
14.	Energy save function (electricity saving mode)
15.	Certified safety CE

[SPECIFICATION]
Technical Data	4 Working Stations	2 Working Stations
Working principle	Impact force	Impact force
Number of working stations	4	2
Grinding bowl size	80, 250, 500 ml	80, 250, 500 ml
Grinding ball diameter	0.5 ~ 40 mm	0.5 ~ 40 mm
Max.feed size	10 mm	10 mm
Min. sample quantity	10 ml	10 ml
Max.sample quantity	900 ml	450 ml
Final fineness	< 1 um	< 1 um
Typical grinding time down to analytical fineness	4 min	4 min
Grinding process	Dry / wet	Dry / wet
Grinding in inert gas	Yes	Yes
Gas pressure and temperature measurement	Yes	Yes
Rotational speed of main disk	50 ~ 400 rpm	50 ~ 400 rpm
Transmission ratio  grinding bowl / planetary disk	i relative = 1 : -2.19	i relative = 1 : -2.19
Effective diameter of main disk	~ 250 mm	~ 250 mm
Centrifugal acceleration	22 g	22 g
Electrical details	10 ~ 120 / 200 ~ 240 V  50 ~ 60 Hz	10 ~ 120 / 200 ~ 240 V  50 ~ 60 Hz
Motor power	1.5 kW	1.5 kW
Weight	120 kg	100 kg
Dimensions (W x D x H)	580 x 670 x 570 mm	580 x 670 x 570 mm

[ACCESSORIES INFORMATION]
Material Data for Grinding Bowls / Grinding Balls
Material	Main component of the material	Density g / cm3	Abrasion resistance	Use for material to be ground
Agate	SiO2	2.65	Good	Soft to medium-hard samples
Sintered corundum	Al2O3(99.7%)	3.8	Fairly good	Medium-hard, fibrous samples
Silicon nitride	Si3N4	3.25	Excellent	Abrasive samples, iron-free grinding
Zirconium oxide	ZrO2	5.9	Very good	Fibrous, abrasive samples
Stainless steel	Fe-Cr-Ni	7.8	Fairly good	Medium-hard, brittle samples
Tempered steel	Fe-Cr	7.9	Good	Hard, brittle samples
Hardmetal tungsten carbide	WC	14.95	Very good	Hard, abrasive samples
Recommended Bowl Filling
I. Grinding balls > 5 mm: Recommended number of balls per grinding bowl
Grindling Bowl /	12 ml	45 ml	80 ml	250 ml	500 ml
Useful capacity	0.5 ~ 5 ml	3 ~ 20 ml	10 ~ 30 ml	30 ~ 125 ml	80 ~ 225 ml
Balls diameter
40 mm					4
30 mm				6	8
20 mm			5	15	25
15 mm		7	10	45	70
10 mm	6	18	25	50	100
5 mm	50	180	250	1200	2000
II. Grinding balls < 3 mm: Recommended ball mass per grinding bowl in grams
Grindling Bowl /	12 ml	45 ml	80 ml	250 ml	500 ml
Useful capacity	0.5 ~ 5 ml	3 ~ 20 ml	10 ~ 30 ml	30 ~ 125 ml	80 ~ 225 ml
Material
Zirconium oxide	20	70	100	400	800
Tempered steel	30	90	150	500	1100
Hardmetal tunsten carbide	50	200	300	1000	2100
