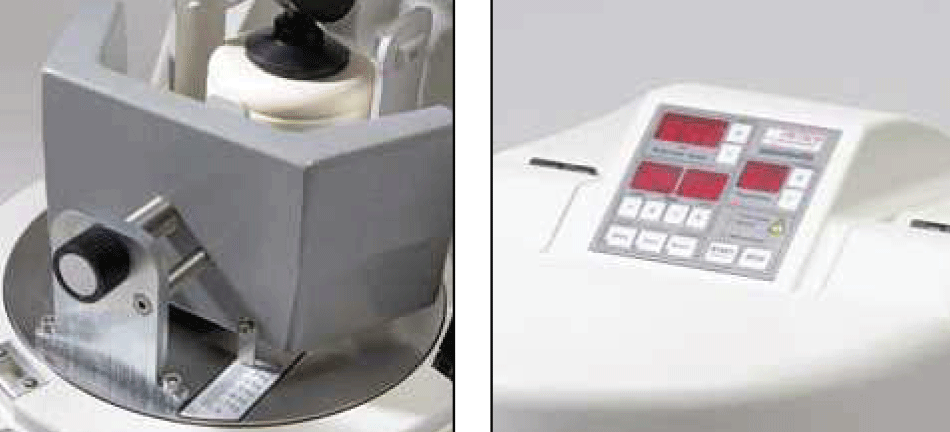

PULVERISETTE 6 Mono Mill Imbalance compensation Grinding Bowl Grinding Ball

[Ordering Information] Cat. # 제 품 명   06.2000.00 PULVERISETTE 6 Mono Mill 견적요청 독일 Fritsch 제품의 공전/자전형 Ball Mill 건식/습식 샘플 모두 가능하며, 최종 입도 1 um 이하로 샘플처리 가능 세라믹, 금속, 화학, 광물, 분석시료 등 의 전처리 장비로 매우 유용 Disk 의 공전속도가 최대 650 rpm으로 high performance 결과를 얻을 수 있음   [Planetary Ball Mill 원리보기]     [주요 기능] 다양한 type의 sample 처리 - Hard, medium-hard, soft, brittle, tough, moist 1개의 Grinding Bowl 를 처리 동시에 2개 Sample 까지 처리 가능 80 ml, 250 ml, 500 ml의 3종류의 Grinding Bowl 사용 다양한 재질의 Grinding Bowl 사용 - Agate - Sintered corundum (99.7% Al2O3) - Silicon nitride, with steel casing - Zirconium oxide - Stainless steel - Tempered steel - Hardmetal tungsten carbide, with steel casing 다양한 크기 및 재질의 Grinding Ball 사용 - 40 mm, 30 mm, 20 mm, 15 mm, 10 mm, 5 mm - 3 mm, 2 mm, 1.5 mm, 1 mm, 0.5 mm 최대 Sample 처리량: 225 ml 최소 Sample 처리량: 10 ml Max. feeding size: 10 mm Inert gas 충진 상태에서 grinding 가능: 산화방지 Planetary disk 와 Grinding bowl 사이의 회전 비율 - 1 : -1.82 - Planetary disk 공전 Speed range: 100 ~ 650 rpm - Grinding Bowl 자전 Speed range: Disk 공전속도   대비 x -1.82 의 비율로 회전

제품 동영상	동영상 자료실 가기
Planetary Ball Mill - Classic line
Planetary Ball Mill - Premium line

[Application]
Geology and mineralogy	Rock, gravel, sand, minerals
Ceramics	Porcelain, sintered ceramics, clay, firelay
Chemistry	Pesticides, fertilisers, salts, inorganic and organic materials
Biology	Plants, leaves, freeze-dried samples
Pharmaceuticals	Ophthalmological agents, gels, creams, extracts, drugs  Pastes, dragees, tablets
Metallurgy	Ores, sinters
Material technology	Pigments, precious materials, new materials,  alloys, mechanical alloying and activating
Analysis preparation	Spectroscopy, X-ray fluorescence,  X-ray structure analysis, chromatography

[장비특징]
1.	Large rotational speed range with accurate display
2.	Grinding chamber completely encapsulated but easy to open
3.	Cooling of the grinding chamber with a built-in fan for long grinding times
4.	Exactly reproducible grinding results thanks to a regulated dirve, precise transmission ratio,   programmable microprocessor control electronics
5.	Progrmmable interval and break times
6.	Smaller grinding bowls also possible with an adapter
7.	RS232 interface for outputting process data (validation)
8.	Monitering of the grinding parameters even when grinding chamber is open through   an ergonomically positioned and always visible, splash-proof IP65 membrane keyboard
9.	Easy cleaning of the grinding elements
10.	Recyclable plastic housing
11.	Extensive range of accessories
12.	Energy save function (electricity saving mode)
13.	Certified safety CE

[SPECIFICATION]
Technical Data	PULVERISETTE 6 Mono Mill
Working principle	Impact force
Number of working stations	1
Grinding bowl size	80, 250, 500 ml
Grinding ball diameter	0.5 ~ 40 mm
Max.feed size	10 mm
Min. sample quantity	10 ml
Max.sample quantity	225 ml
Final fineness	< 1 um
Typical grinding time down to analytical fineness	4 min
Grinding process	Dry / wet
Grinding in inert gas	Yes
Gas pressure and temperature measurement	Yes
Rotational speed of main disk	100 ~ 650 rpm
Transmission ratio  grinding bowl / planetary disk	i relative = 1 : -1.82
Effective diameter of main disk	121.6 mm
Centrifugal acceleration	29 g
Electrical details	10 ~ 120 / 200 ~ 240 V  50 ~ 60 Hz
Motor power	0.75 kW
Weight	63 kg
Dimensions (W x D x H)	370 x 530 x 500 mm

[ACCESSORIES INFORMATION]

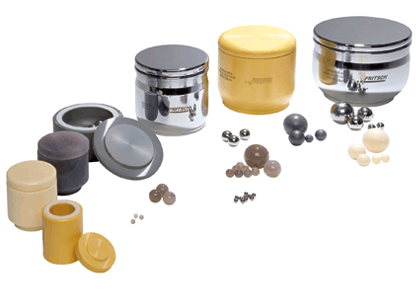

Material Data for Grinding Bowls / Grinding Balls
Material	Main component of the material	Density g / cm3	Abrasion resistance	Use for material to be ground
Agate	SiO2	2.65	Good	Soft to medium-hard samples
Sintered corundum	Al2O3(99.7%)	3.8	Fairly good	Medium-hard, fibrous samples
Silicon nitride	Si3N4	3.25	Excellent	Abrasive samples, iron-free grinding
Zirconium oxide	ZrO2	5.9	Very good	Fibrous, abrasive samples
Stainless steel	Fe-Cr-Ni	7.8	Fairly good	Medium-hard, brittle samples
Tempered steel	Fe-Cr	7.9	Good	Hard, brittle samples
Hardmetal tungsten carbide	WC	14.95	Very good	Hard, abrasive samples
Recommended Bowl Filling
I. Grinding balls > 5 mm: Recommended number of balls per grinding bowl
Grindling Bowl /	12 ml	45 ml	80 ml	250 ml	500 ml
Useful capacity	0.5 ~ 5 ml	3 ~ 20 ml	10 ~ 30 ml	30 ~ 125 ml	80 ~ 225 ml
Balls diameter
40 mm					4
30 mm				6	8
20 mm			5	15	25
15 mm		7	10	45	70
10 mm	6	18	25	50	100
5 mm	50	180	250	1200	2000
II. Grinding balls < 3 mm: Recommended ball mass per grinding bowl in grams
Grindling Bowl /	12 ml	45 ml	80 ml	250 ml	500 ml
Useful capacity	0.5 ~ 5 ml	3 ~ 20 ml	10 ~ 30 ml	30 ~ 125 ml	80 ~ 225 ml
Material
Zirconium oxide	20	70	100	400	800
Tempered steel	30	90	150	500	1100
Hardmetal tunsten carbide	50	200	300	1000	2100
