PULVERISETTE 19 Large Cutting Mill Grinding Chamber Geometry Cutting Rotor & Knives Large grinding chamber & sieve for large materials

[Ordering Information] Cat. # 제 품 명   19.4040.00 PULVERISETTE 19L Power Cutting Mill (50 ~ 700 rpm) 견적요청 19.4060.00 PULVERISETTE 19L Power Cutting Mill (300 ~ 3,000 rpm) 견적요청 독일 Fritsch 제품의 Power Cutting Mill Cutting 및 shearing force에 의해서 sample milling. 다양한 재질의 Cutting Rotor & Knives 사용. Large sample의 Pre-crushing 에 사용 - 조분쇄용 별도의 tool 없이 Assembly & disassembly 가 손쉬운 Cutting rotor 및 Sieve cassette 구조 - Easy Cleaning.     [주요 기능] 다양한 type의 sample 처리 - Medium-hard, soft, tough, fibrous, plastics etc.. Max. feed size: 120 x 85 mm 로 large sample 처리 Max. throughpu: 85 L / h 2가지 Speed 모델 - 50 ~ 700 rpm 모델: 저속회전으로 미분 최소화 - 300 ~ 3,000 rpm 모델: 고속회전으로 미분 분쇄 다양한 크기의 Sieve cassette 사용 (SUS 316) - 1 mm, 2 mm (Trapezoidal) - 4 mm, 6 mm, 8 mm, 10 mm (Square) 다양한 재질의 Cutting rotor 및 Knives 사용 - Standard rotor with V-cutting edges (tool steel) - Rotor with V-cutting edges (hardmetal tungsten carbide) - Rotor with V-cutting edges (chromium-free steel) 5 kW의 강력한 High-torque motor 이용한 powerful 한 milling 가능 (3-phase moter) Sample의 특성 및 처리량에 따라서 Funnel 및 Collecting vessel 선택

제품 동영상	동영상 자료실 가기
Cutting Mill Operation - Pulverisette19
Cutting Mill Cleaning - Pulverisette19

[Application]
Plastics and textiles	Plastics, rubber, films, leather, fabric, fibres
Agriculture and forestry	Wood, leaves, roots, animal fodder, grain, corn, peat, tobacco, straw
Environment	Paper, cardboard, derived fuels, metal-free waste, household waste,  composites
RoHS	Mobile phone LCD glass, mobile phone keypads, electronic chips,  circuit boards
Analytic	Coal, bones, horn, dragees, tablets, cork, drugs
Construction materials	Derived fuels
Chemistry	Heterogeneous mixture of materials
Foodstuffs	Maize, malt, pasta, herbs, spices, dried meat

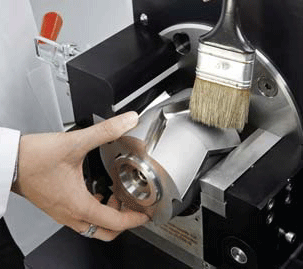

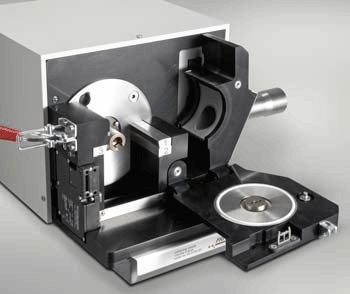

[Easy Cleaning - Fast, simple assembly & disassembly]

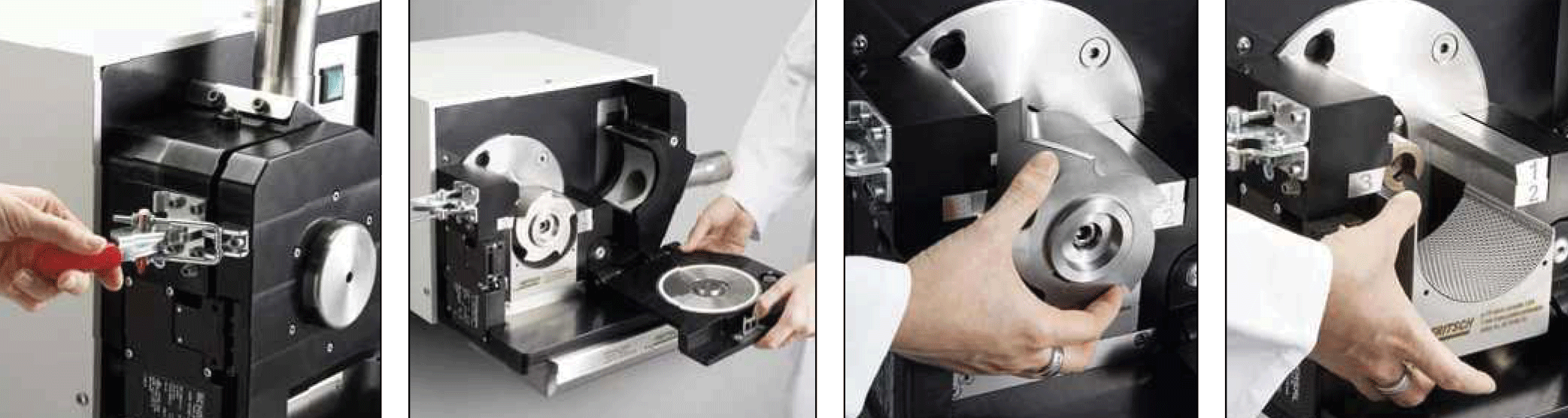

All grinding parts can be removed for cleaning in just a few seconds without tools

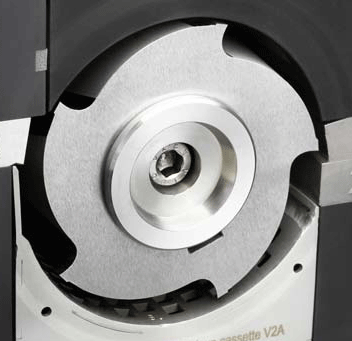

[Cutting Rotor & Fixed Knives]
Standard rotor      - V-cutting edges      - Fixed knives      - Tempered steel	Rotor       - V-cutting edges       - Fixed knives       - Hardmetal tungsten carbide

[장비특징]
1.	Max. feed size 120 x 85 mm
2.	High-torque geared motor (5 kW)
3.	Easy, fast and thorough cleaning of the grinding chamber and of all cutting tools
4.	Cutting rotor and sieve cassette can be removed and replaced without tools
5.	Variety of rotors available to adapt the cutting performance to suit the sample
6.	Externally adjustable cutting gap
7.	Housing and closing lid can be lifted th open completely
8.	CE mark

[SPECIFICATION]
Technical Data	PULVERISETTE 19 Large Cutting Mill
Cat.No.	19.4040.00	19.4060.00
Rotor speed range	50 ~ 700 rpm	300 ~ 3,000 rpm
Rotor peripheral speed	0.26 ~ 3.66 m/s	1.57 ~ 15.7 m/s
Working principle	Cutting
Optimal for material type	Medium-hard, soft, brittle, tough, fibrous
Max. feed size	125 x 85 mm
Max. throughput	85 L / h
Sieve inserts	0.5 ~ 10 mm
Feeding	Batchwise / continuous
Materials of the cutting tools	Tool steel, hardmetal tungsten carbide, chromium-free steel
Electrical details	380 ~ 460V / 3~, 50 ~ 60 Hz, 5,000 watt
Motor shaft power	5 kW
Weight	88 kg
Dimensions (W x D x H)	450 x 650 x 630 mm
