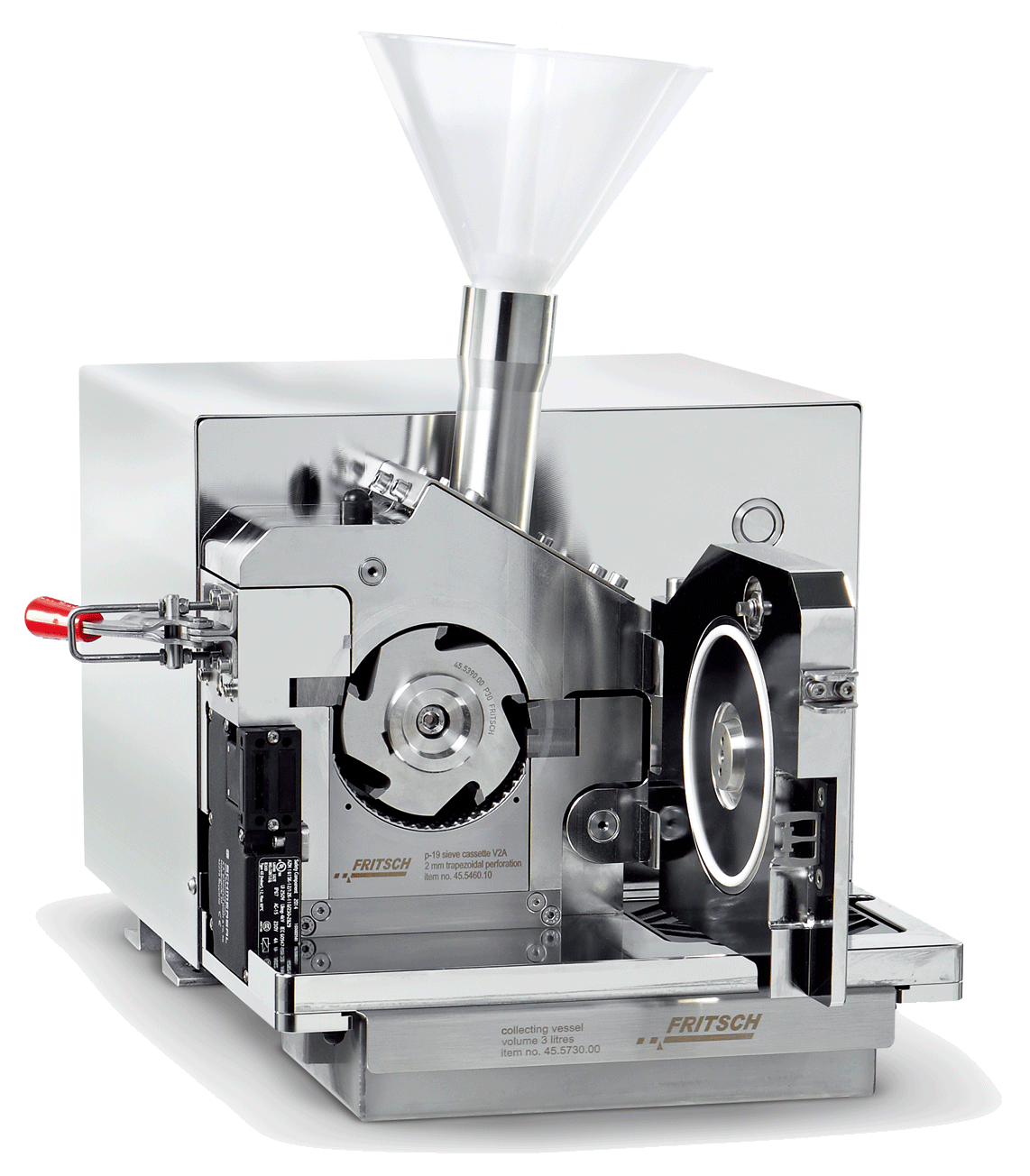

PULVERISETTE 19 Cutting Mill PULVERISETTE 19 Cutting Mill - door open Grinding Chamber Geometry Cutting Rotor & Knives Sieve Cassette

[Ordering Information] Cat. # 제 품 명   19.3020.00 PULVERISETTE 19 Universal Cutting Mill 견적요청 독일 Fritsch 제품의 Universal Cutting Mill Cutting 및 shearing force에 의해서 sample milling. 다양한 재질의 Cutting Rotor & Knives 사용. 별도의 tool 없이 Assembly & disassembly 가 손쉬운 Cutting rotor 및 Sieve cassette 구조 - Easy Cleaning.     [주요 기능] 다양한 type의 sample 처리 - Medium-hard, soft, tough, fibrous, plastics etc.. Max. feed size: 70 x 80 mm 최대 300 ~ 3,000rpm의 고속회전을 이용한 cutting 다양한 크기의 Sieve cassette 사용 (SUS 316) - 0.2 mm, 0.25 mm, 0.5 mm, 0.75 mm, 1 mm,   1.5 mm, 2 mm (Trapezoidal) - 4 mm, 6 mm (Square) 다양한 재질의 Cutting rotor 및 Knives 사용 - Standard rotor with V-cutting edges (tool steel) - Rotor with V-cutting edges (hardmetal tungsten carbide) - Rotor with straight cutting edges (tool steel) - Rotor with V-cutting edges (chromium-free steel) - Rotor with straight cutting edges (chromium-free steel) Sample의 특성 및 처리량에 따라서 Funnel 및 Collecting vessel 선택

제품 동영상	동영상 자료실 가기
Cutting Mill Operation - Pulverisette19
Cutting Mill Cleaning - Pulverisette19

[Application]
Plastics and textiles	Plastics, rubber, films, leather, fabric, fibres
Agriculture and forestry	Wood, leaves, roots, animal fodder, grain, corn, peat, tobacco, straw
Environment	Paper, cardboard, derived fuels, metal-free waste, household waste,  composites
RoHS	Mobile phone LCD glass, mobile phone keypads, electronic chips,  circuit boards
Analytic	Coal, bones, horn, dragees, tablets, cork, drugs
Construction materials	Derived fuels
Chemistry	Heterogeneous mixture of materials
Foodstuffs	Maize, malt, pasta, herbs, spices, dried meat

[Easy Cleaning - Fast, simple assembly & disassembly]
All grinding parts can be removed for cleaning in just a few seconds without tools

[Cutting Rotor & Fixed Knives]
Standard rotor      - V-cutting edges      - Fixed knives      - Tempered steel	Rotor     - V-cutting edges     - Fixed knives     - Hardmetal tungsten carbide	Rotor     - Straight cutting edges     - Fixed knives     - Tempered steel

[장비특징]
1.	Max. feed size 70 x 80 mm
2.	Max. rotor speed 300 ~ 3,000rpm
3.	Variety of rotors available to adapt the cutting performance to suit the sample
4.	Cutting rotor and sieve cassette can be removed and replaced without tools
5.	Externally adjustable cutting gap
6.	Housing and closing lid can be lifted th open completely
7.	Smooth, easy-to-clean interior grinding chamber walls
8.	CE mark

[SPECIFICATION]
Technical Data	PULVERISETTE 19 Universal Cutting Mill
Working principle	Cutting
Optimal for material type	Medium-hard, soft, brittle, tough, fibrous
Max. feed size	70 x 80 mm
Max. throughput	60 L / h
Sieve inserts	0.25 ~ 6 mm
Feeding	Batchwise / continuous
Materials of the cutting tools	Tool steel, hardmetal tungsten carbide, chromium-free steel
Rotor speed	300 ~ 3,000 rpm
Rotor peripheral speed	1.57 ~ 15.7 m/s
Electrical details	230V / 1~, 50 ~ 60 Hz, 2,350 watt
Motor shaft power	1.5 kW
Weight	60 kg
Dimensions (W x D x H)	440 x 790 x 560 mm
