PULVERISETTE 15 Cutting Mill
[제조사 : FRITSCH, Germany]

 돌아가기

PULVERISETTE 15 Cutting Mill

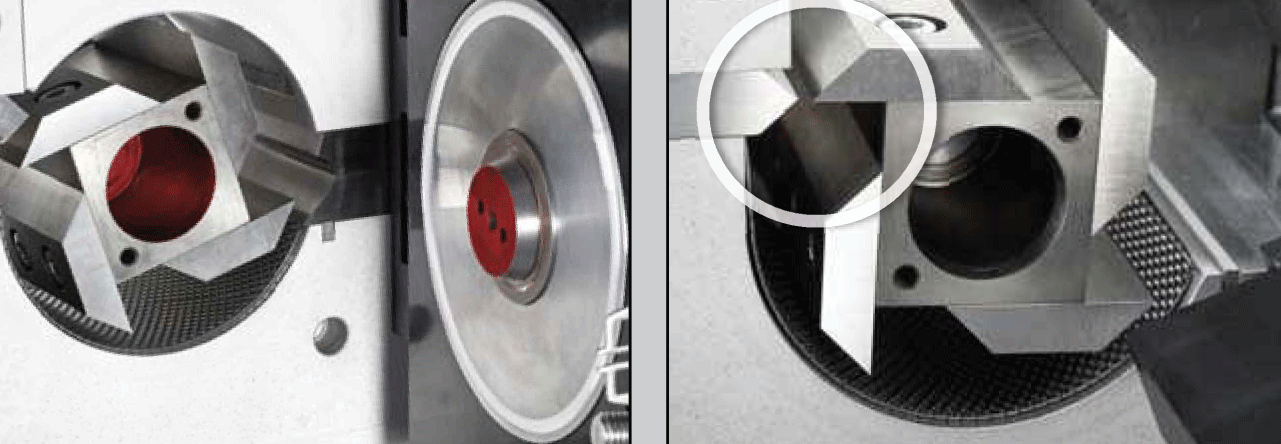

Cutting rotor & Knives




[Ordering Information]
Cat. # 제 품 명
15.4020.00 PULVERISETTE 15 Cutting Mill 견적요청

독일 Fritsch 제품의 Universal Cutting Mill
Cutting 및 shearing force에 의해서 sample milling.
다양한 재질의 Cutting Rotor & Knives 사용.



  [주요 기능]

  • 다양한 type의 sample 처리
    - Medium-hard, soft, tough, fibrous
  • Max. feed size: 70 x 70 mm
  • 최대 2,800 rpm의 고속회전을 이용한 cutting
  • 다양한 크기의 Sieve cassette 사용 (SUS 316)
    - 0.25 mm, 0.5 mm, 0.75 mm, 1 mm,
      1.5 mm, 2 mm (Trapezoidal)
    - 4 mm, 6 mm (Square)
  • 다양한 재질의 Cutting rotor 및 Knives 사용
    - Rotor with rotating and fixed knives (tool steel)
    - Rotor with rotating and fixed knives
      (chromium-free steel)
  • Sample의 특성 및 처리량에 따라서 Funnel 및 Collecting vessel 선택



제품 동영상 동영상 자료실 가기
Cutting Mill Operation - Pulverisette19
Cutting Mill Cleaning - Pulverisette19


  [Application]
 Plastics and textiles   Plastics, rubber, films, leather, fabric, fibres
 Agriculture and forestry   Wood, leaves, roots, animal fodder, grain, corn, peat, tobacco, straw
 Environment   Paper, cardboard, derived fuels, metal-free waste, household waste,
 composites
 RoHS   Mobile phone LCD glass, mobile phone keypads, electronic chips,
 circuit boards
 Analytic   Coal, bones, horn, dragees, tablets, cork, drugs
 Construction materials   Derived fuels
 Chemistry   Heterogeneous mixture of materials
 Foodstuffs   Maize, malt, pasta, herbs, spices, dried meat


  [장비특징]
1.  Max. feed size 70 x 70 mm
2.  Max. rotor speed 2,800 rpm
3.  Standard collecting vessel 3.5 litres or 60 litres
4.  Funnel for long and bulk solids or 2 lite- protected-funnel made of stainless steel
  with plastic pusher
5.  Externally adjustable cutting gap
6.  Defined final fineness due to interchangeable sieve inserts
7.  CE mark


  [SPECIFICATION]
Technical Data    PULVERISETTE 15 Cutting Mill
Working principle   Cutting
Optimal for material type   Medium-hard, soft, fibrous
Max. feed size   70 x 70 mm
Max. throughput   50 L / h
Sieve inserts   0.25 ~ 6 mm
Feeding   Batchwise / continuousl
Materials of the cutting tools   Tool steel, chromium-free steel
Rotor speed   2,800 rpm
Electrical details   400 V / 3~, 50 ~ 60 Hz, 1,900 watt
 230V / 1~, 50 ~ 60 Hz, 2,100 watt
Motor shaft power   1.5 kW
Weight   42 kg
Dimensions (W x D x H)   420 x 480 x 690 mm
