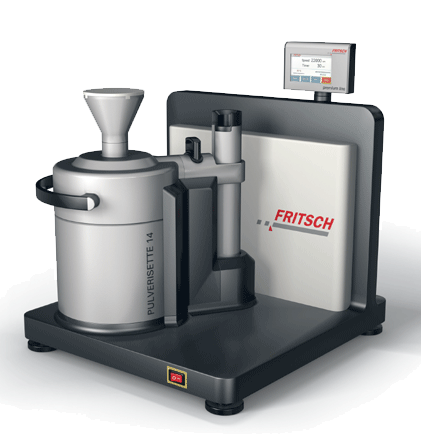

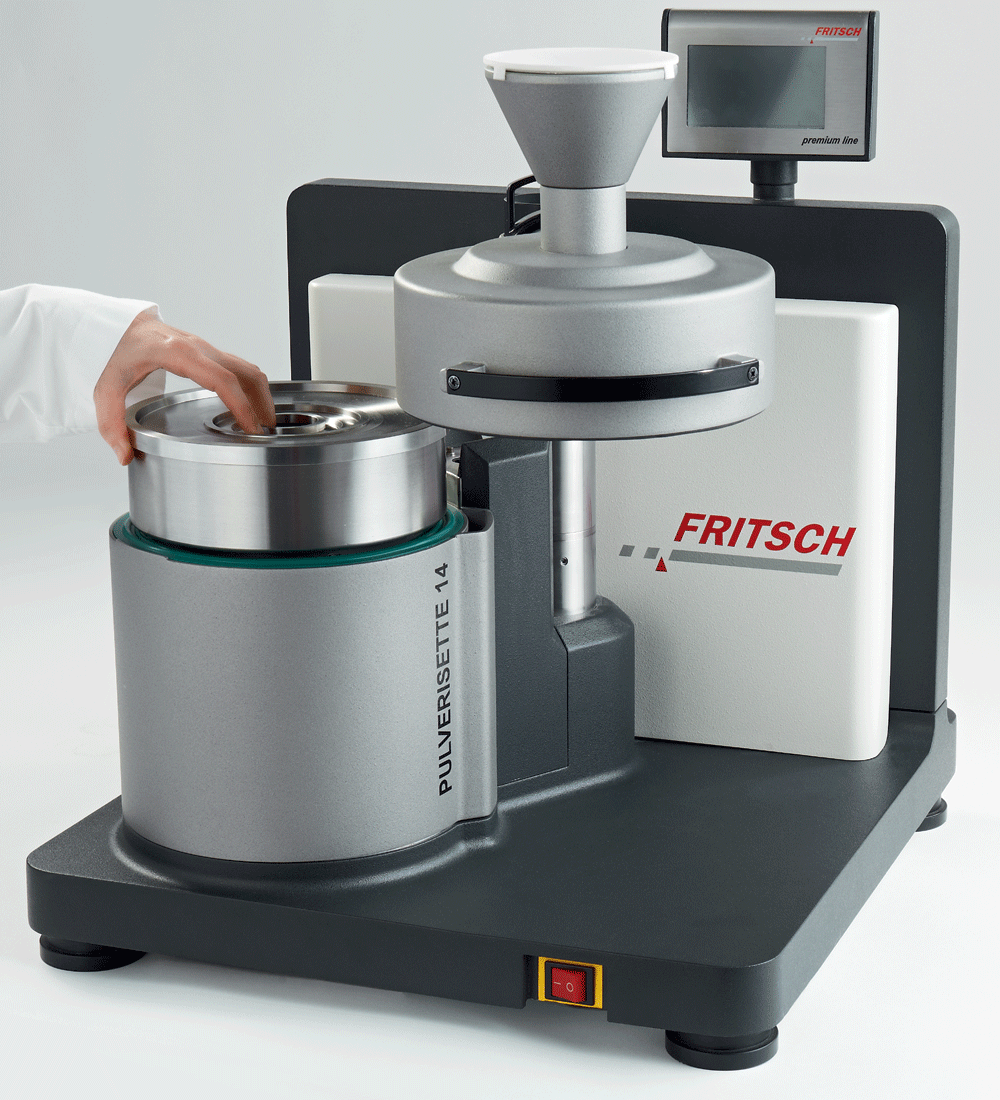

PULVERISETTE 14P Rotor Mill   Automatic feeding Raw coffee milling Tablet milling

[Ordering Information] Cat. # 제 품 명   14.6020.00 PULVERISETTE 14P Variable-Speed Rotor Mill - Premium line 견적요청 독일 Fritsch 제품의 Variable Speed Rotor Mill 온도에 민감한 Sample 및 Plastic sample milling에 최적인 장비 - 액체질소에 sample을 동결한 후 분쇄.     [주요 기능] Rotor의 고속회전에 의한 miling - Speed range: 6,000 ~ 22,000 rpm Sample종류에 따라서 3가지 Type Rib 를 가진 Rotor 선택 - 8-ribes: Fibrous substance sample 처리시 - 12-ribes: Feeding size가 10 mm 이하인 sample 처리시 - 24-ribes: Feeding size가 5 mm 이하인 sample 처리시 다양한 hole size을 갖는 Sieve ring을 사용하여 처리 샘플의 입도 조절 - 최소 D50 < 40um 수준까지 분쇄 - 0.08 mm, 0.12 mm, 0.2 mm, 0.5 mm, 0.75mm - 1 mm, 1.5 mm, 2 mm, 4 mm, 6 mm . 2가지 타입의 Rotor 사용 - Impact rotor: 기존 rotor mill 기능 구현 - Cutting rotor: cutting mill 기능 구현 효율적인 Cooling 이 가능한 시스템 - Fan이 장비 내부로 cooling air를 불어 넣어주어, 장비 및 sample의 온도상승을 막아줌 Grinding chamber, part 를 다양한 재질로 변경 가능 - Chamber: Stainless steel, PTFE-coated - Part: Stainless steel, titanium, TiN- & WC- coated Cleaning 용이 - rotor, sieve ring, pan 등이 모두 분리되어 손쉽게 세척이 가능    [Sample Preparation] Grinding of Soft Sample (leaves, grain, soft food) - PTFE-coated lid, vessel 이용하여 grinding - Titanium impact Rotor & Sieve ring 이용하여 grinding Grinding of Medium Hard Sample (rice, wood, leather, plastics etc.) - PTFE-coated lid and vessel 이용하여 grinding - TiN-coated Rotor, Sieve ring 이용하여 grinding RoHS Preparation - Tungsten-carbide coated 12-ribs Rotor - Tungsten-carbide coated Sieve ring

제품 동영상	동영상 자료실 가기
Rotor Mill - Pulverisette 14

[Application]
Analytic	Creation of samples for the chemical analysis of soil samples, slurries or plant samples, spectroscopy
Biology	Plants, roots, leaves, needles, grains, drugs, peat, seeds, ash
Chemistry	Chemicals, fillers, waxes, paraffins, chalk, kaolin
Agriculture and forestry	Plants, wood, roots, leaves, needles, grains, soil (without stones), fertilisers, pellets, feed
Foodstuffs	Rice, spices, foodstuffs for protein and nitrogen analysis, dried fruits
Plastics and textiles	Textiles, leather, cellulose, compound materials, rubber, styrenes, powder coatings, polyester, synthetic resins, foils, PVC, PP and PE
Pharmaceuticals	Pharmaceuticals, dragées, tablets
Environment/rohs	Electronic parts, plastics, glass

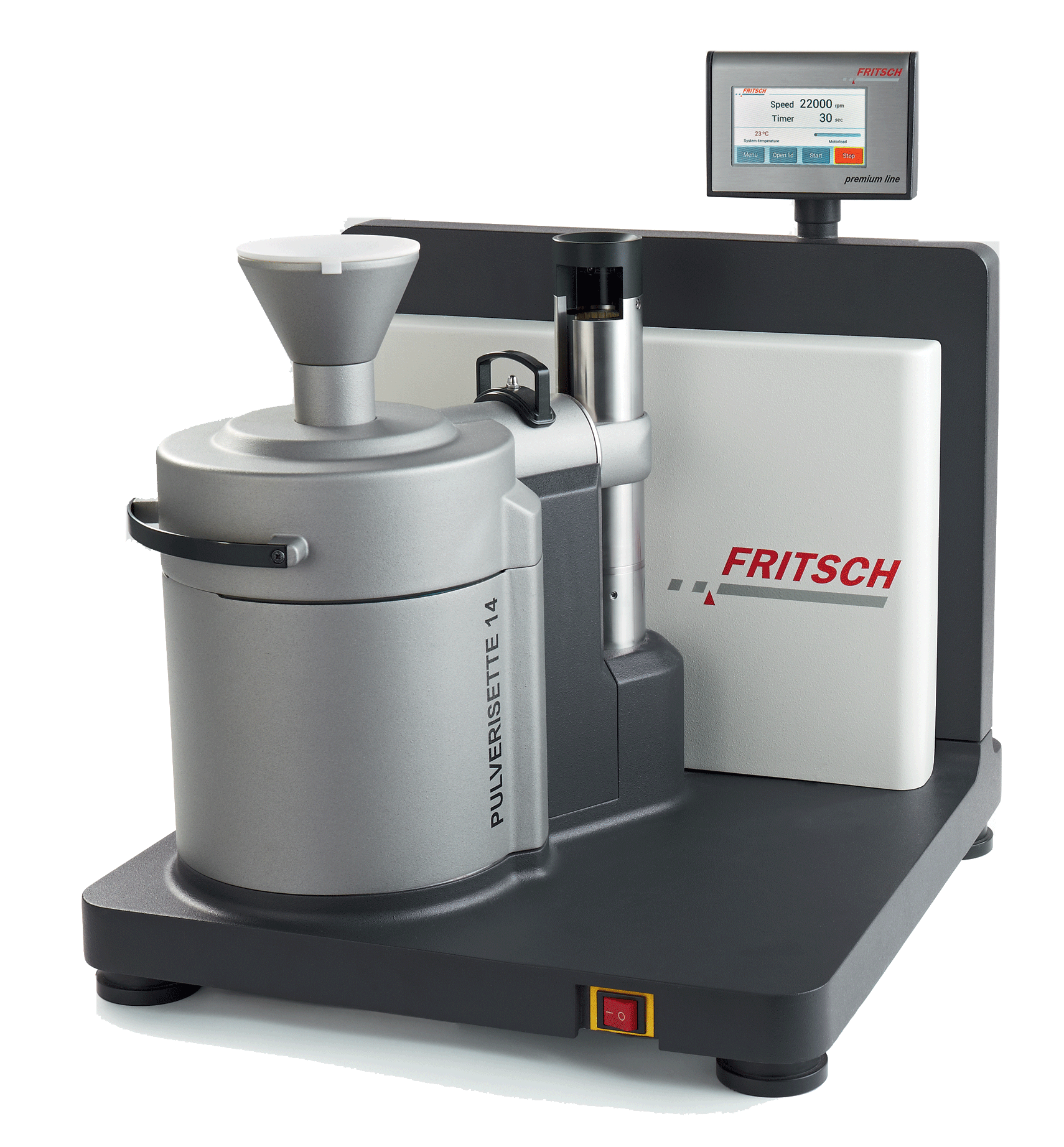

[Intellignet AutoLOCK grinding chamber] - Simple operation

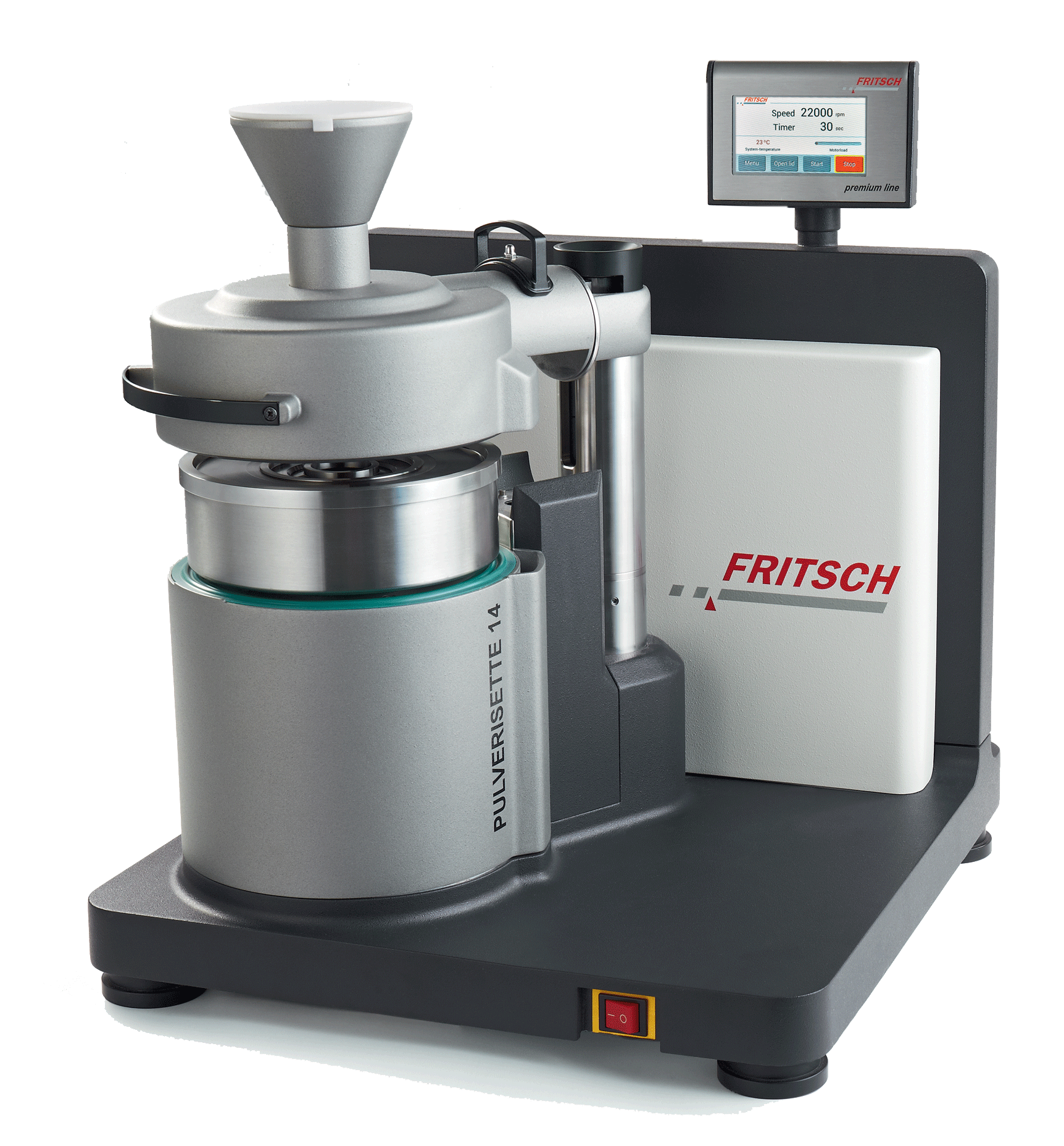

Open lid	Move lid	Close lid

[Easy assembly & dis-assembly & cleaning]

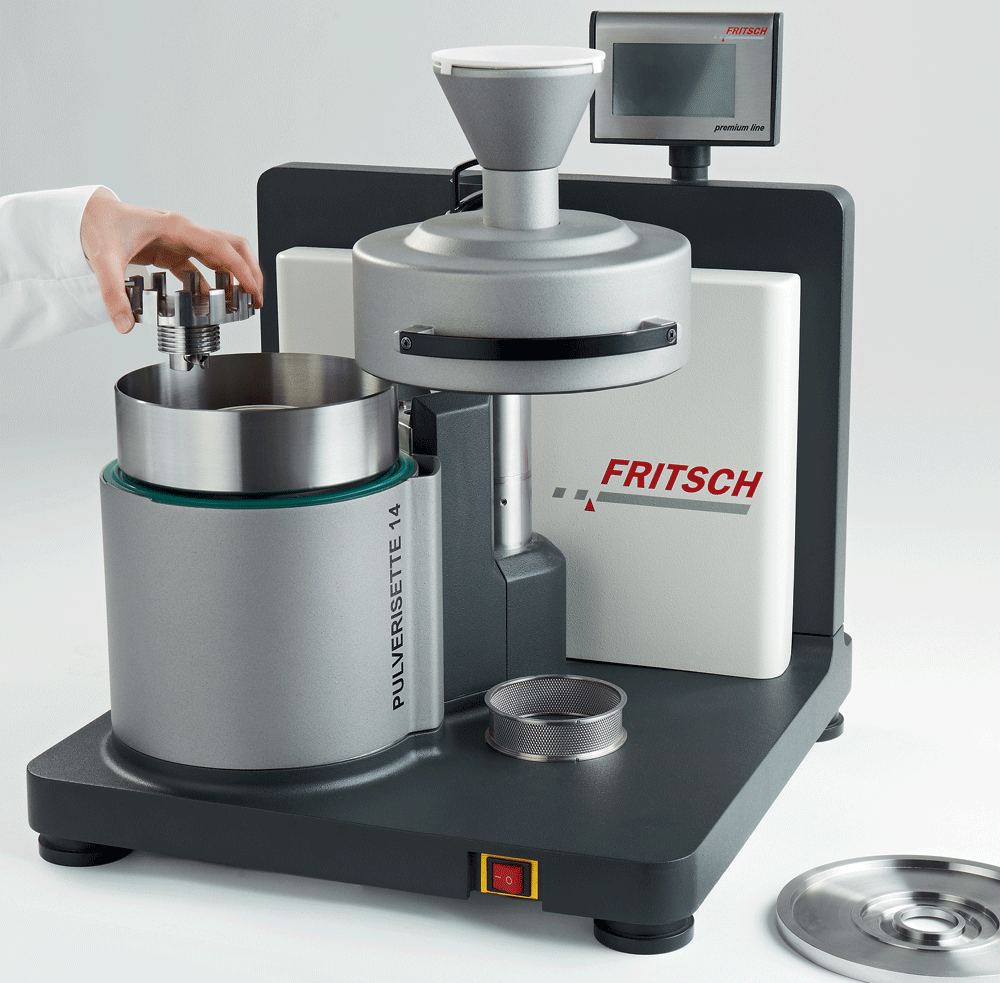

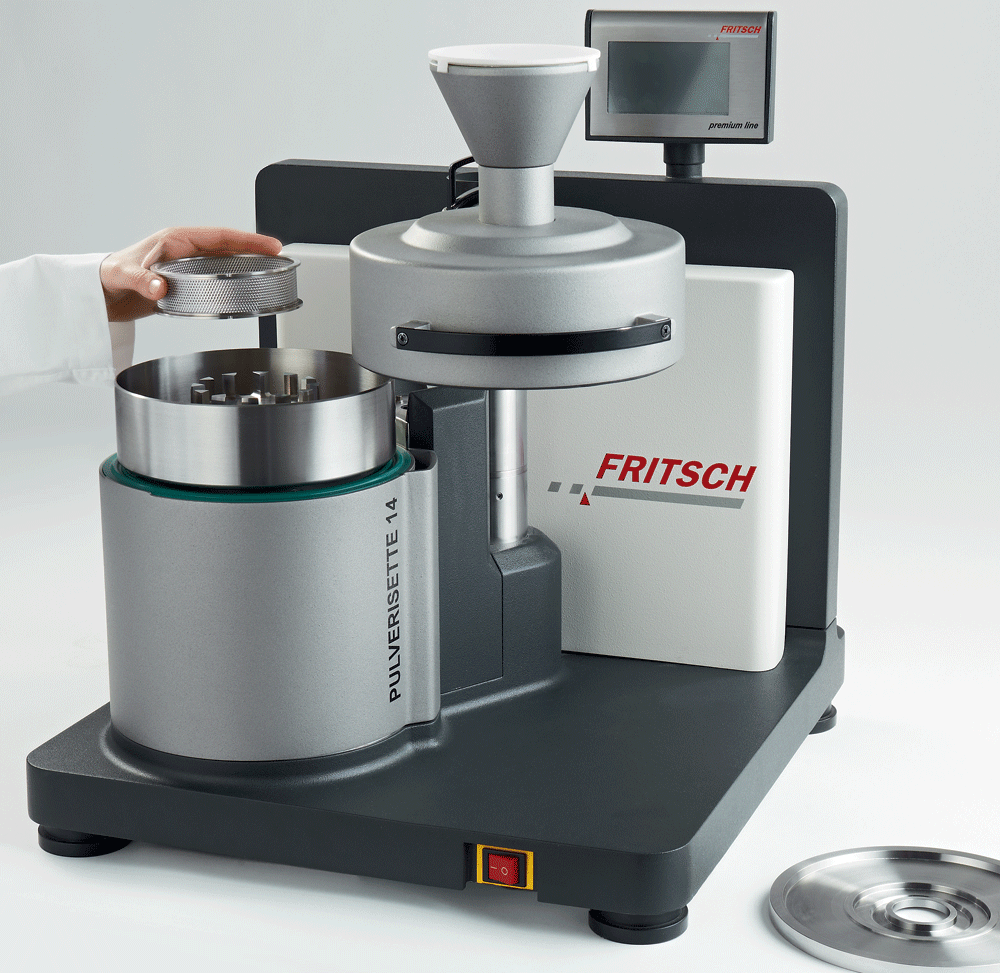

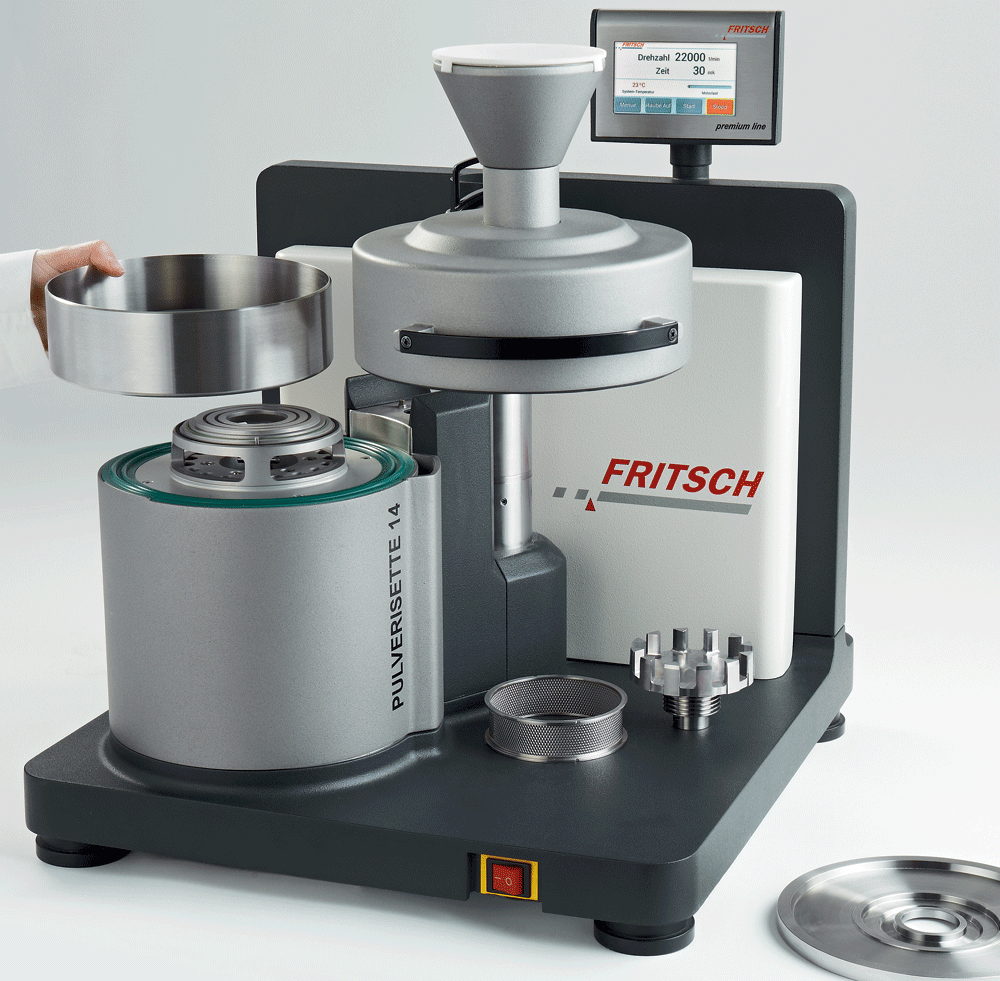

Insert vessel	Insert rotor	Insert sieve	Insert lid

[Impact Rotor & Grinding Parts]

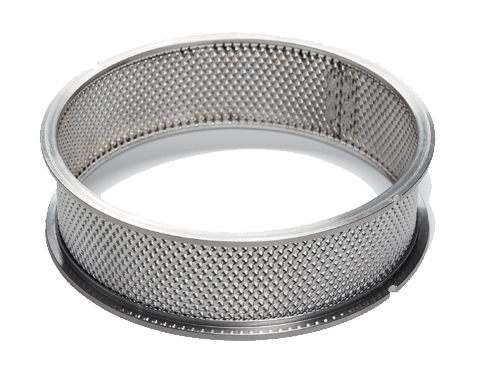

Impact rotor	Sieve rings

[Cutting Rotor & Grinding Parts]

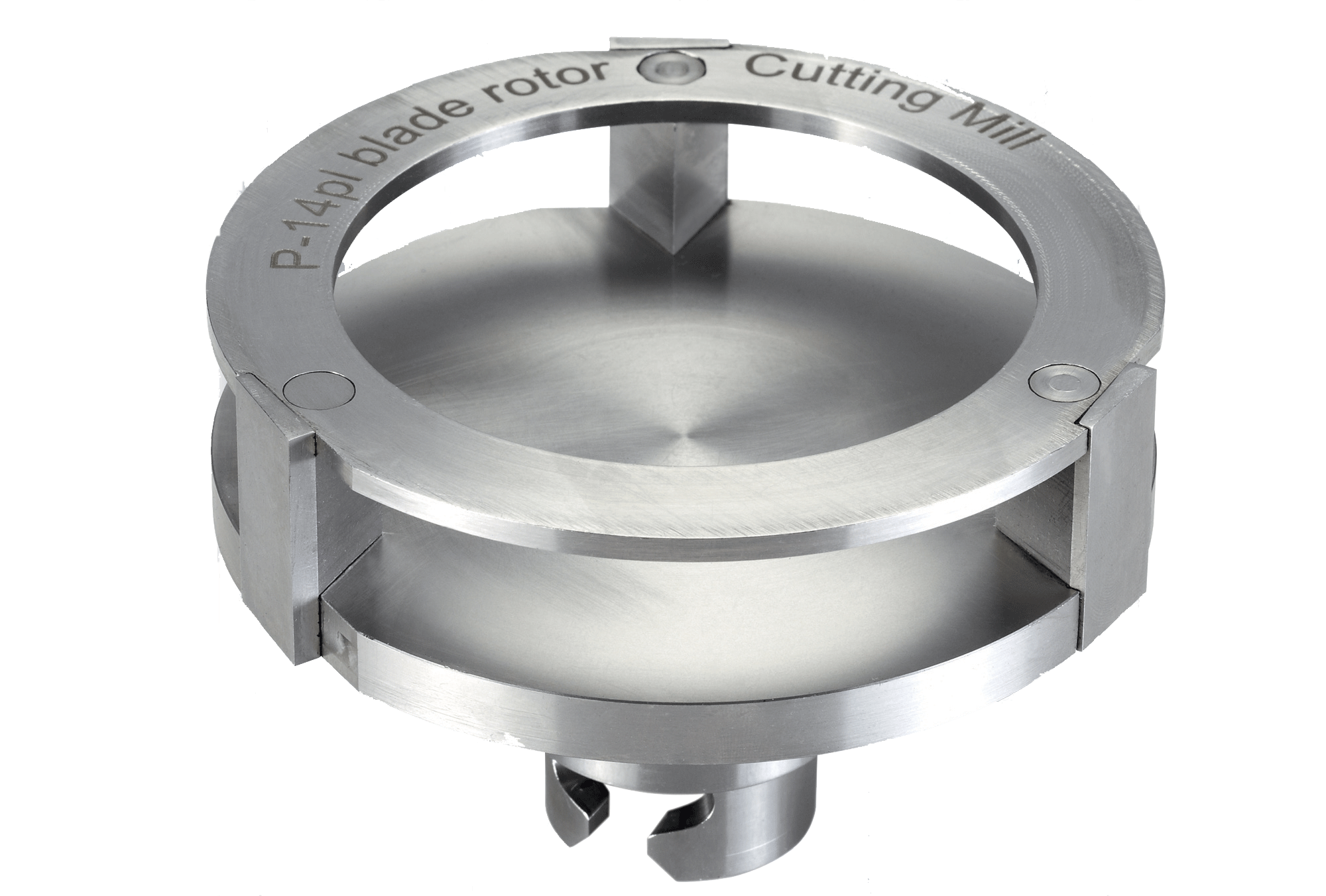

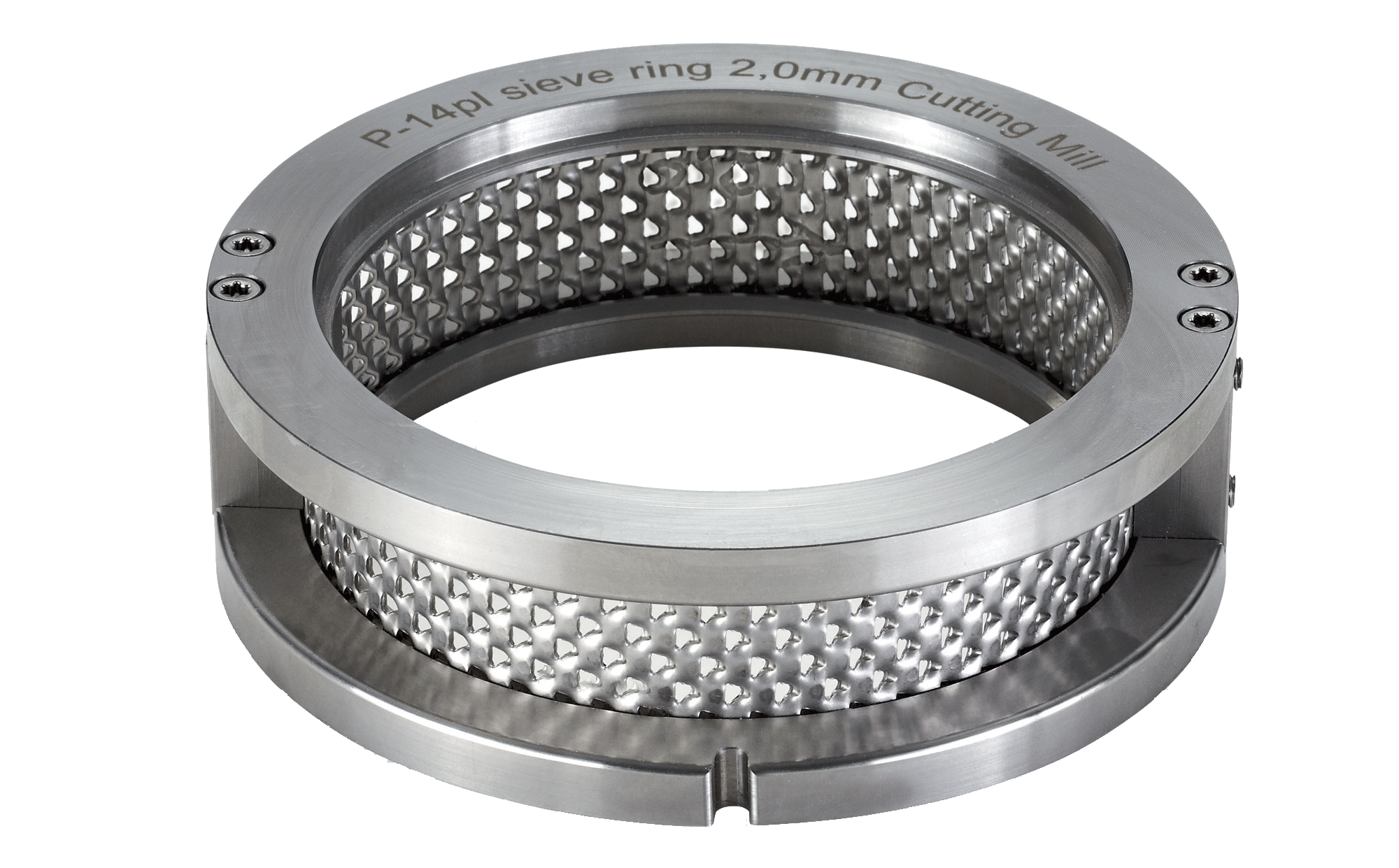

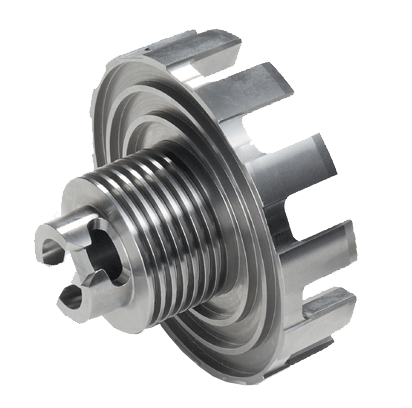

Cutting rotor	Sieve rings

[장비특징]
1.	Powerful with 22,000 rpm of the impact rotor for particularly fast sample throughput
2.	Extremely high impact speed of the impact rotor (111 m/s = 399.6 km/h)
3.	Max. feed size < 15 mm, sample throughput of up to 15 l/h and more
4.	Final fineness D50 < 40 μm, sieve rings 0.08 ~ 6 mm
5.	Multifunctional with impact or cutting rotor in one instrument
6.	Intelligence-Safety-Control-System for particularly safe operation
7.	Batchwise or continuous grinding with FRITSCH Cyclone separators
8.	Particularly good cooling of the grinding material
9.	Easiest cleaning due to Clean Design

[SPECIFICATION]
Technical Data	PULVERISETTE 14P Variable Speed Rotor Mill - Premium line
As Variable Speed Rotor Mill
Working principle	Impact force
Optimal for material type	Medium-hard, soft, brittle, fibrous, temperature-sensitive
Grinding tool	Impact rotor, impact bar and sieve rings
Materials of the grinding tool	Stainless steel, stainless steel 316L, pure titanium
Max. feed size	15 mm
Min. sample quantity	< 10 ml
Max. throughput	15 L / h
Impact rotor speed	6,000 ~ 22,000 rpm
Impact speed	111 m/s = 399.6 km/h
Sieve inserts	0.08 ~ 6 mm
As Cutting Mill
Working principle	Cutting
Optimal for material type	Soft, fibrous, hard-tough materials and plastics
Cutting tool	Cutting rotor and sieve shells
Materials of the cutting tool	Stainless steel, hardmetal tungsten carbide, pure titanium, zirconium oxide, stainless steel 316L, TiN-coated
Max. feed size	10 mm
Min. sample quantity	< 10 ml
Max. throughput	15 L / h
Cutting rotor speed	6,000 ~ 18,000 rpm
Cutting rotor peripheral speed	30 ~ 83 m/s
Sieve inserts	0.08 ~ 4 mm
Both versions of the mill
Feeding	Batchwise / continuous grinding with FRITSCH Cyclone separators
Electrical details	230V / 1~, 50 ~ 60 Hz, 2,500 watt
Weight	43 kg
Dimensions (W x D x H)	550 x 520 x 630 mm
