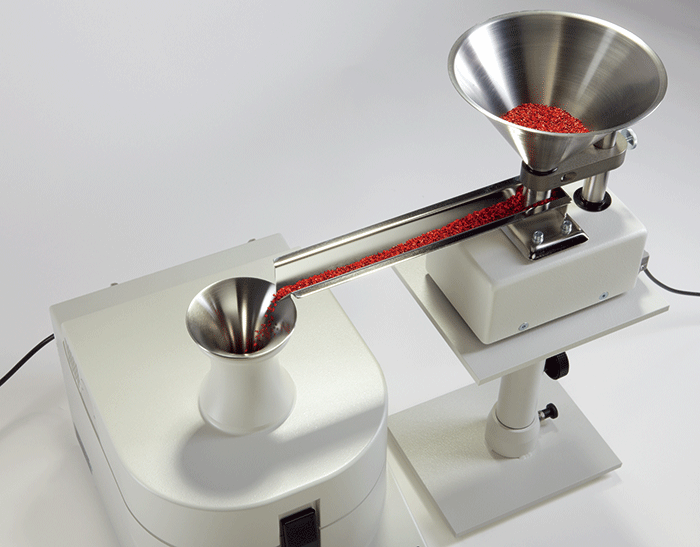

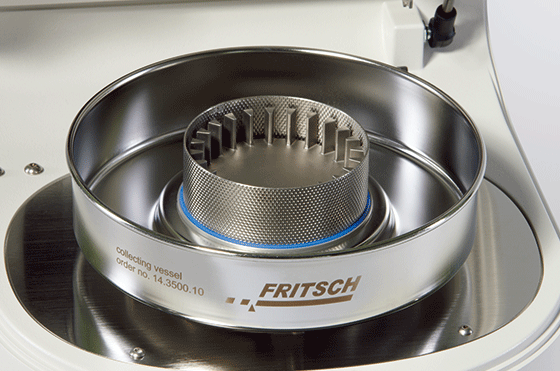

PULVERISETTE 14 Rotor Mill Grinding chamber, rotor, sieve ring Automatic feeding Raw coffee milling Tablet milling

[Ordering Information] Cat. # 제 품 명   14.3000.00 PULVERISETTE 14 Variable-Speed Rotor Mill 견적요청 독일 Fritsch 제품의 Variable Speed Rotor Mill 온도에 민감한 Sample 및 Plastic sample milling에 최적인 장비 - 액체질소에 sample을 동결한 후 분쇄.     [주요 기능] Rotor의 고속회전에 의한 miling - Speed range: 6,000 ~ 20,000 rpm Sample종류에 따라서 3가지 Type Rib 를 가진 Rotor 선택 - 8-ribes: Fibrous substance sample 처리시 - 12-ribes: Feeding size가 10 mm 이하인 sample 처리시 - 24-ribes: Feeding size가 5 mm 이하인 sample 처리시 다양한 hole size을 갖는 Sieve ring을 사용하여 처리 샘플의 입도 조절 - 최소 D50 < 40um 수준까지 분쇄 - 0.08 mm, 0.12 mm, 0.2 mm, 0.5 mm, 0.75mm - 1 mm, 1.5 mm, 2 mm, 4 mm, 6 mm . 효율적인 Cooling 이 가능한 시스템 - Fan이 장비 내부로 cooling air를 불어 넣어주어, 장비 및 sample의 온도상승을 막아줌 Grinding chamber, part 를 다양한 재질로 변경 가능 - Chamber: Stainless steel, PTFE-coated - Part: Stainless steel, titanium, TiN- & WC- coated    [Sample Preparation] Grinding of Soft Sample (leaves, grain, soft food) - PTFE-coated lid, vessel 이용하여 grinding - Titanium impact Rotor & Sieve ring 이용하여 grinding Grinding of Medium Hard Sample (rice, wood, leather, plastics etc.) - PTFE-coated lid and vessel 이용하여 grinding - TiN-coated Rotor, Sieve ring 이용하여 grinding RoHS Preparation - Tungsten-carbide coated 12-ribs Rotor - Tungsten-carbide coated Sieve ring

제품 동영상	동영상 자료실 가기

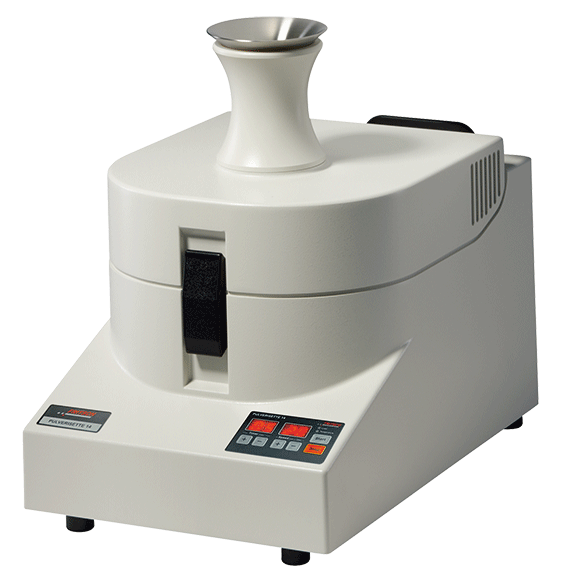

Rotor Mill - Pulverisette 14

[Application]
Analytic	Creation of samples for the chemical analysis of soil samples, slurries or plant samples, spectroscopy
Biology	Plants, roots, leaves, needles, grains, drugs, peat, seeds, ash
Chemistry	Chemicals, fillers, waxes, paraffins, chalk, kaolin
Agriculture and forestry	Plants, wood, roots, leaves, needles, grains, soil (without stones), fertilisers, pellets, feed
Foodstuffs	Rice, spices, foodstuffs for protein and nitrogen analysis, dried fruits
Plastics and textiles	Textiles, leather, cellulose, compound materials, rubber, styrenes, powder coatings, polyester, synthetic resins, foils, PVC, PP and PE
Pharmaceuticals	Pharmaceuticals, dragées, tablets
Environment/rohs	Electronic parts, plastics, glass

[Impact Rotor & Grinding Parts]

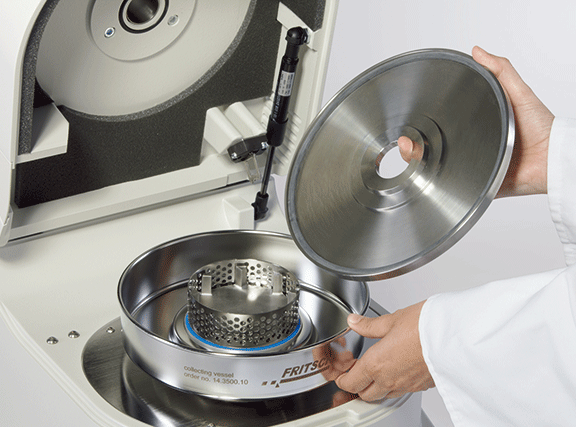

Fast exchange of grinding parts	Stainless steel impact Rotor

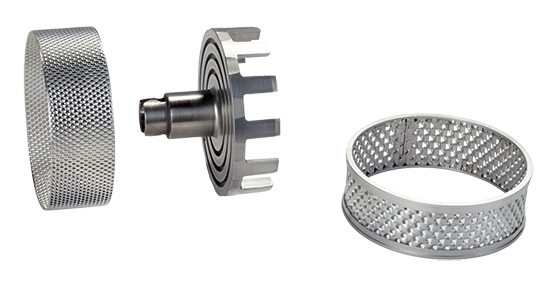

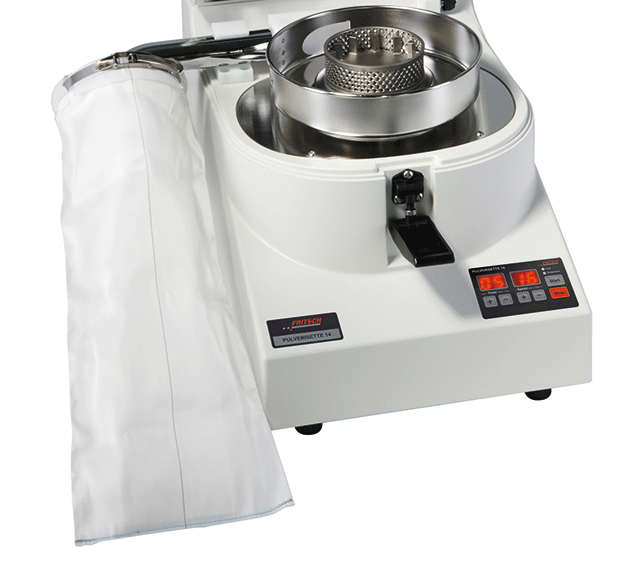

Rotor and Sieve rings	Large quantity bag

[장비특징]
1.	Rapid sample throughput due to high-speed grinding and simple cleaning
2.	Max. feed size 10 mm, max. throughput 5 l/h
3.	Final fineness D50 < 40 μm, sieve inserts 0.08 - 6 mm
4.	Ideal for minimal sample quantities: 5 – 10 ml
5.	Simple changing of all grinding parts without tools
6.	Variable speed settings between 6,000 and 20,000 rpm
7.	Automatic speed regulation for constant milling
8.	Simple, contamination-free cleaning and assembly of all grinding parts outside the instrument
9.	Efficient cooling of the grinding chamber due to extremely high airflow
10.	Removable dust filter for convenient cleaning
11.	Ergonomic operating panel with membrane keyboard and timer

[SPECIFICATION]
Technical Data	PULVERISETTE 14 Variable Speed Rotor Mill
Working principle	Impact force
Optimal for material type	Medium-hard, soft, brittle, fibrous, temperature-sensitive
Max. feed size	10 mm
Min. sample quantity	5 ~ 10 ml
Max. throughput	5 L / h
Sieve inserts	0.08 ~ 6 mm
Feeding	Batchwise / continuous
Grinding part	Impact rotor, pin insert, impact bar
Materials of the grinding part	Stainless steel, pure titanium, TiN-coated steel, WC-coated steel
Motor speed	6,000 ~ 20,000 rpm
Electrical details	230V / 1~, 50 ~ 60 Hz, 1,150 watt
Motor shaft power	0.5 kW
Weight	23 kg
Dimensions (W x D x H)	310 x 480 x 470 mm
