PULVERISETTE 13 Disk Mill Two Grinding Disk Grinding Disk

[Ordering Information] Cat. # 제 품 명   13.1030.00 PULVERISETTE 13 - Disk Mill 견적요청 독일 Fritsch 제품의 Disk Mill 금속에 의한 샘플 Contamination을 최소화할 수 있는 Disk mill (Iron-Free Grinding) [주요 기능] 2개의 Disk의 회전에 의한 샘플 milling - Fixed disk, Movable disk 구성: - Movable disk의 회전을 통한 샘플 grinding Disk와 Disk 사이의 Gap를 조절하여 샘플입도조절 - 최소 0.1mm부터 gap 조절 지름 200 mm의 Disk 최소 100 um 수준까지 Grinding 가능 다양한 재질의 Disk 선택 가능 - Hardened steel cast - Manganese steel - Hardmetal tungsten carbide - Zirconium oxide Max. feeding size: 20 mm 까지 가능 연속 처리 : 최대 150 kg / hr

제품 동영상	동영상 자료실 가기
Disk Mill - Classic line

[Application]
Mining and metallurgy	Ores, coal, coke, slags
Ceramics industry	Steatite, sintered ceramics,electrotechnical porcelain, fire-proof clay, dental ceramics
Rocks and soils	Bauxite, slags, quartz, clinker, gypsum, chalk
Glass industry	Frits, different glass types, raw materials
Soil research	Dried soil samples, sewage sludge, hydrological sediments, drilling cores

[Image]
Two Disk Structure	Movable Disk

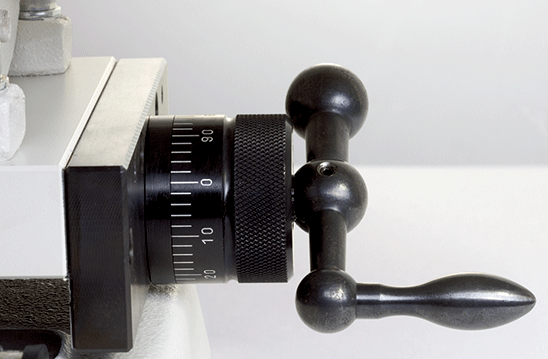

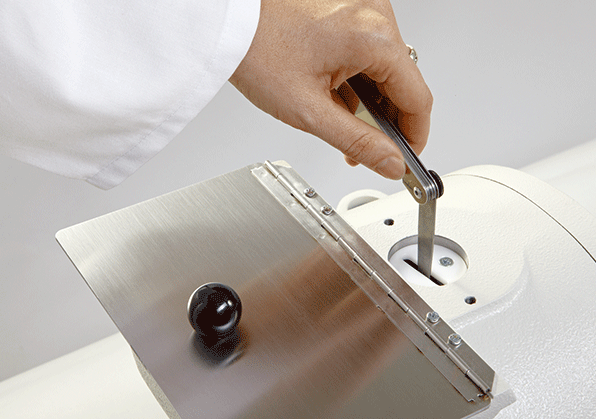

Gap control of Disk	Gap checking
Sample feeding	Sample collecting

[장비특징]
1.	High throughput up to 150 kg/h
2.	Fine grinding down to 0.1 mm
3.	Fast, easy cleaning
4.	Simple operation
5.	Fast grinding disk change
6.	Precision setting of the fi nal fi neness even during grinding
7.	High service life due to generously dimensioned bearings

[SPECIFICATION]
Technical Data	PULVERISETTE 13 Disk Mill
Working principle	Shearing force
Optimal for material type	Hard-brittle, medium-hard
Max. feed size	20 mm
Min. sample quantity	20 ~ 30 ml
Max. throughput	150 kg / h
Final fineness	0.1 ~ 12 mm
Feeding	Batchwise / continuous
Grinding part	Fixed and movable grinding disk
Materials of the grinding part	Hardened steel cast, manganese steel,  Hardmetal tungsten carbide, Zirconium oxide
Motor speed	440 rpm
Electrical details	400V / 3~, 50 ~ 60 Hz, 1,830 watt
Motor shaft power	1.5 kW
Weight	140 kg
Dimensions (W x D x H)	440 x 870 x 400 mm
