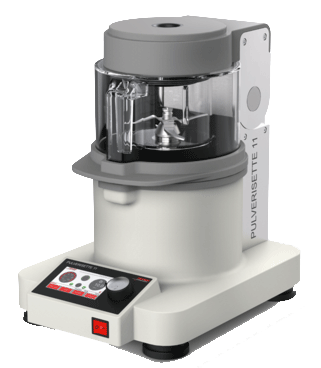

PULVERISETTE 11 Knife mill Vario-Lid system Grinding vessel Grinding lid Grinding knife

[Ordering Information] Cat. # 제 품 명   11.3020.00 PULVERISETTE 11 Knife Mill 견적요청 독일 Fritsch 제품의 고속 Knife Mill 건식/습식 샘플 모두 가능하며, 최종 입도 300 um 까지 샘플처리 가능 식품, 곡물, 제약, 동물식품, 화학샘플 등 의 전처리 장비로 매우 유용     [주요 기능] 고성능 128mm Knife를 이용한 샘플분쇄 - Moist (fish, meat, ham etc..), oily, fatty, - Dry (곡물), soft, fibrous 샘플 분쇄 Variable speed: 2,000 ~ 10,000 rpm - Turbo function: 14,000 rpm (for 6 sec) - Knife tip speed: Max. ~ 67 m/s (초고속분쇄가능) Grinding vessel: 1.4 Liter - Plastic PC vessel:   autoclavable, transparent, scratch-resistant. - Stainless steel 316L vessel Grinding knife - Standard knife: stainless steel 4-blades - Special knife: stainless steel serrated blades   firbous, tough, sinewy sample 분쇄시 용이 Vario-Lid system: - Plastic plunger를 이용하여 vessel volume를 조절 - 최소 0.54 L까지 조절할 수 있음 - 균질화 및 분쇄크기를 최소화하는데 효율적 - 샘플특성에 따른 분쇄성능 최대화 - Autoclavable Cryogenic Milling: - 액체질소를 이용한 분쇄 - Gummi, chocolate, plastic toy 같은 분쇄과정에서   변형이 생기거나 접착 및 점착 성질이 있는 샘플   분쇄에 최적 - Stainless steel 316L vessel을 이용 SOPs (Standard Operating Procedure) - 20 개의 조건을 설정하고 저장 - 15 grinding squence programming - USB interface Touch screen, multifunction dial 을 이용한 control Safe operation - vessel, kinfe 및 safey lock 설정되었을 때 작동 - knife 회전시 protective hood 가 열리지 않음 Easy cleaning - vessel, knife 분리 및 결합 용이

제품 동영상	동영상 자료실 가기
Knife Mill - Pulverisette 11
Various applications

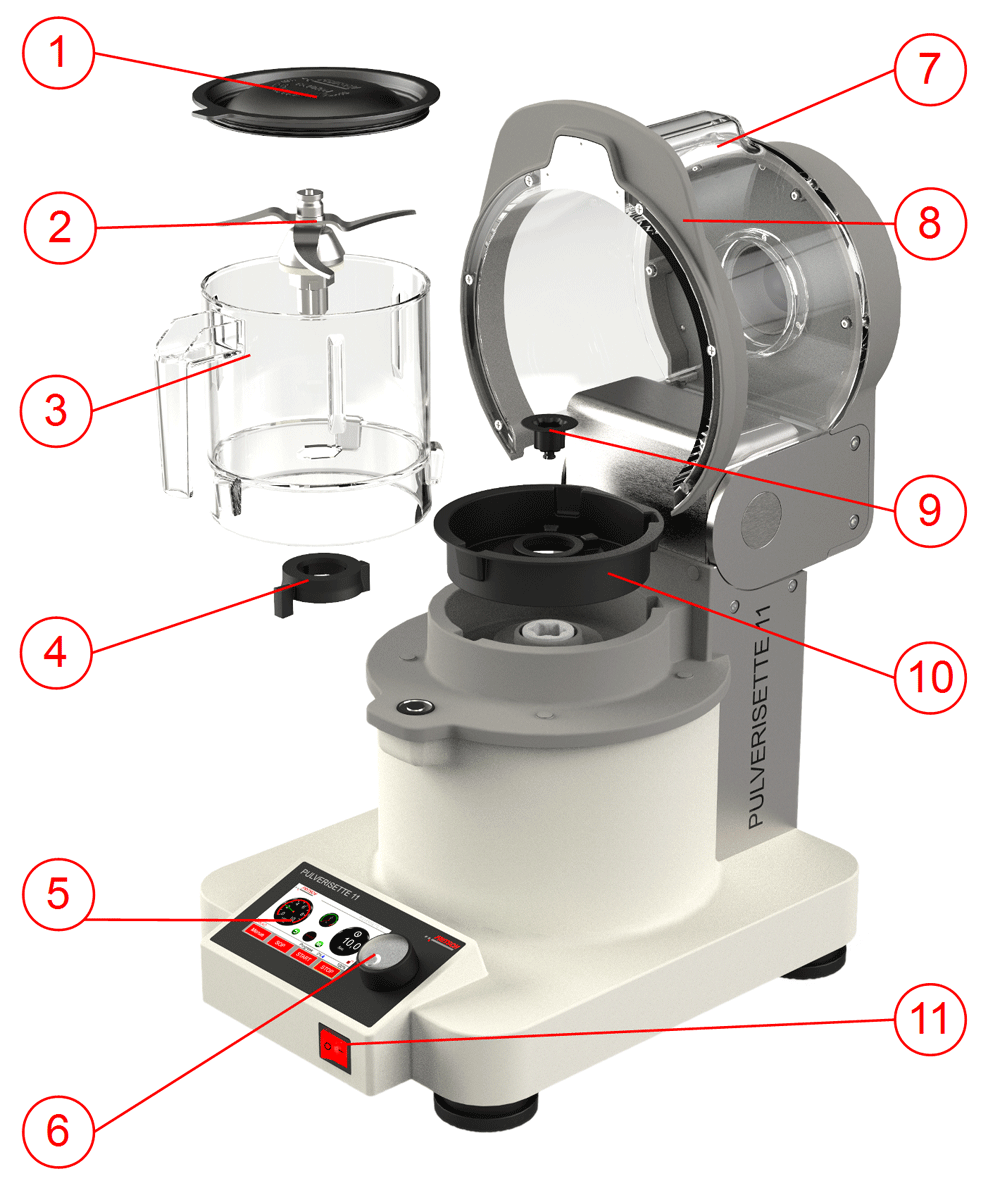

[Structure for Knife mill]
	Basic Structure Silicon lid Knife Cutting stock container Bayone lock Touchscreen Rotary switch Transparent screen, hood Hood handle Knife coupling Silocon inlay Main switch

[Application]
Foodstuffs	Cereal bars, dried fruit, fish, meat, ham, sausages,  frozen foods, vegetables, potatoes, spices, cheese,  cacao nibs, nuts, dietary supplements, confectionery,  salad, convenience foods, bread
Animal feed	Feed pellets, dog food
Agriculture and forestry	Grain, oilseed, seeds, hops
Biology	Plants, parts of plants, leaves, freeze-dried samples,  straw, hay, tissue disruption
Pharmaceuticals	Tablets, dragées, pharmaceutical products, soaps,  herbs, teas
Chemistry	Dishwasher tabs, detergent tabs

[장비특징]
1.	Max. feed size 40 mm, final fineness < 300 μm
2.	Sample quantity < 1,400 ml, with the Vario-Lid system < 540 ml
3.	Complete comminution and homogenisation in seconds
4.	Digital setting of the grinding time as continuous mode or between 0 – 360 seconds in 0.5 second steps, average grinding time 30 seconds
5.	Knife diameter 128 mm, knife peripheral speed ~ 67 m/s
6.	Manual and programmable interval and reverse mode
7.	Rotational speed regulated by microprocessor
8.	USB interface for SOP management
9.	Safety lock of grinding vessel, knife and protective hood with stoppage monitoring
10.	Gas pressure springs for easy opening of the protective hood
11.	If the motor temperature is too high, power is reduced automatically
12.	Intuitive operation via colour 4.3“ touchscreen and practical multifunctional dial
13.	Easy cleaning

[SPECIFICATION]
Technical Data	PULVERISETTE 11 Knife Mill
Working principle	Cutting
Optimal for material type	Moist, oily, fatty, dry, soft,  medium-hard and fibrous
Cutting tools	Standard knife with 4 blades  Knife with serrated blades
Materials of the autoclavable cutting tools	Knife: stainless steel  Grinding vessel: plastic PC, stainless steel 316L  Lid: silicone, plastic PP
Max. feed size (depends on material)	40 mm
Feed quantity (depends on material)	< 1,400 ml
Final fineness (depends on material)	< 300 µm
Average grinding time	30 sec
Variable speed settings	2,000 – 10,000 rpm  Turbo-function with 14,000 rpm for max. 6 sec.
Knife circumferential speed	~ 67 m/s
Knife diameter	128 mm
Operation modes	Continuous, reverse and interval mode
SOP's can be saved (Standard Operating Procedures)	20 SOPs with up to 15 grinding sequences
USB interface	for SOP Management
Electrical details	10 ~ 120 / 200 ~ 240 V  50 ~ 60 Hz
Motor power	1.250W
Weight	17.6 kg
Dimensions (W x D x H)	320 x 430 x 480 mm
