PULVERISETTE 1 Jaw Crusher
[제조사 : FRITSCH, Germany]

 돌아가기

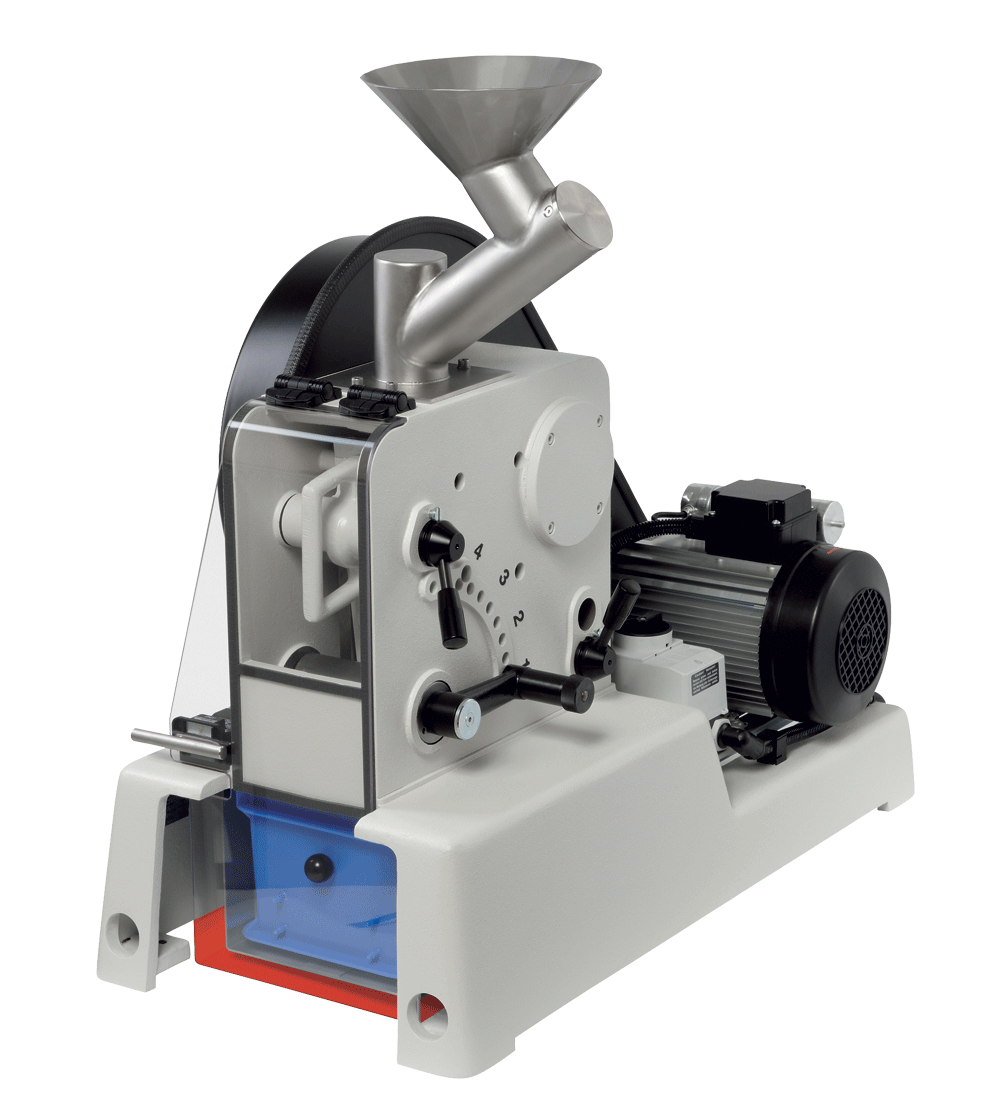

PULVERISETTE 1 Jaw Crusher


[Ordering Information]
Cat. # 제 품 명
01.5030.00 PULVERISETTE 1 -
 Jaw Crusher model I		 견적요청
01.7030.00 PULVERISETTE 1 -
 Jaw Crusher model II		 견적요청

독일 Fritsch Jaw Crusher
조분쇄에 적합한 분쇄장비
주먹만한 크기의 샘플을 손톱크기로 분쇄

[주요 기능]

  • 2개의 Jaw 를 이용한 milling
    - Fixed jaw, Movable jaw 구성
    - Movable jaw 의 운동을 통한 샘플 grinding
  • Jaw와 Jaw 사이의 Gap를 조절하여 샘플입도조절
  • 1~15 mm 수준까지 Grinding 가능
  • 다양한 재질의 Jaw 선택 가능
    - Temperature steel
    - Stainless steel
    - Manganese steel
    - Hardmetal tungsten carbide
    - Zirconium oxide
  • Max. feeding size:
    - Model I: 60 mm 까지 가능
    - Model II: 95 mm 까지 가능
  • 연속 처리 :
    - Model I: 최대 140 kg / hr
    - Model II: 최대 200 kg / hr
  • Disk mill 과 연속사용가능
    - Jaw crusher & Disk mill combination


제품 동영상 동영상 자료실 가기
Jaw crusher
Jaw crusher & Disk mill combination


  [Application]
Mining and metallurgy   Nibium-titanium, ferrovanadium, chrome vanadium, tungsten carbide,
ores, coal, slag, coke
Chemistry   Wide variety of various raw materials
Geology and mineralogy   Granite, basalt, barite, silicated and other rocks
 Glass industry   Frits, different glass types, raw materials
Ceramics industry   Dental ceramics, Steatite, sintered ceramics,electrotechnical porcelain,
fire-proof clay, dental ceramics
 Rocks and soils   Bauxite, slags, quartz, clinker, gypsum, chalk


  [Image]

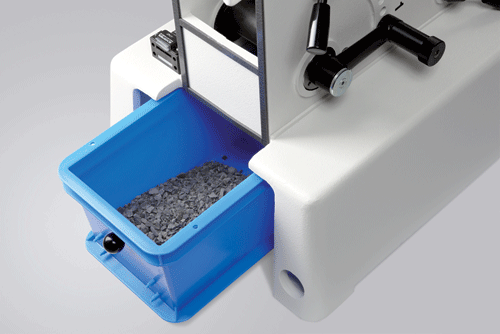

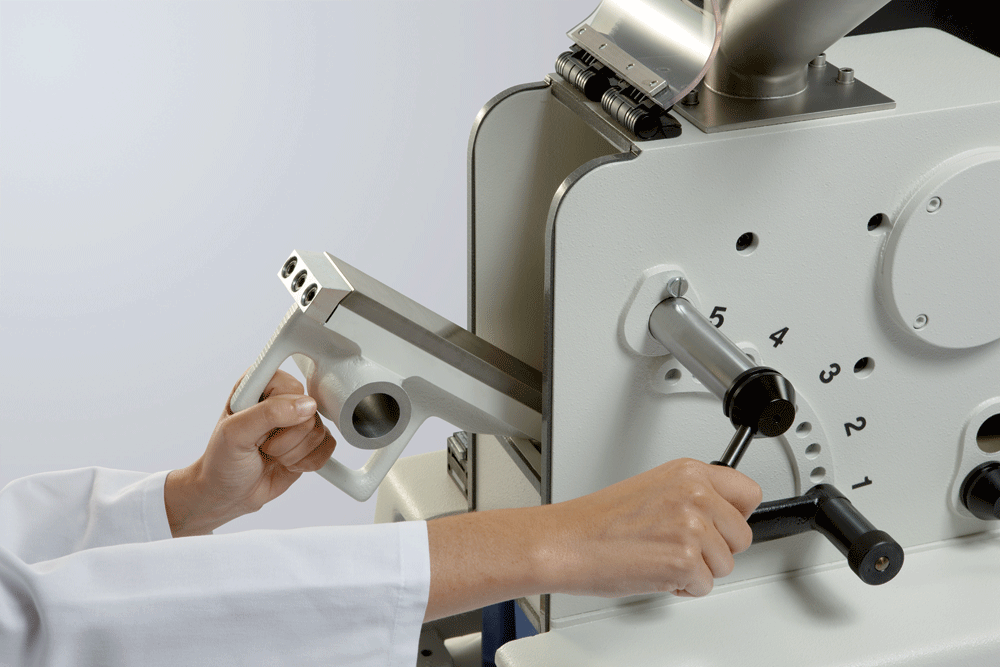

Collecting vessel Crushing jaw removal

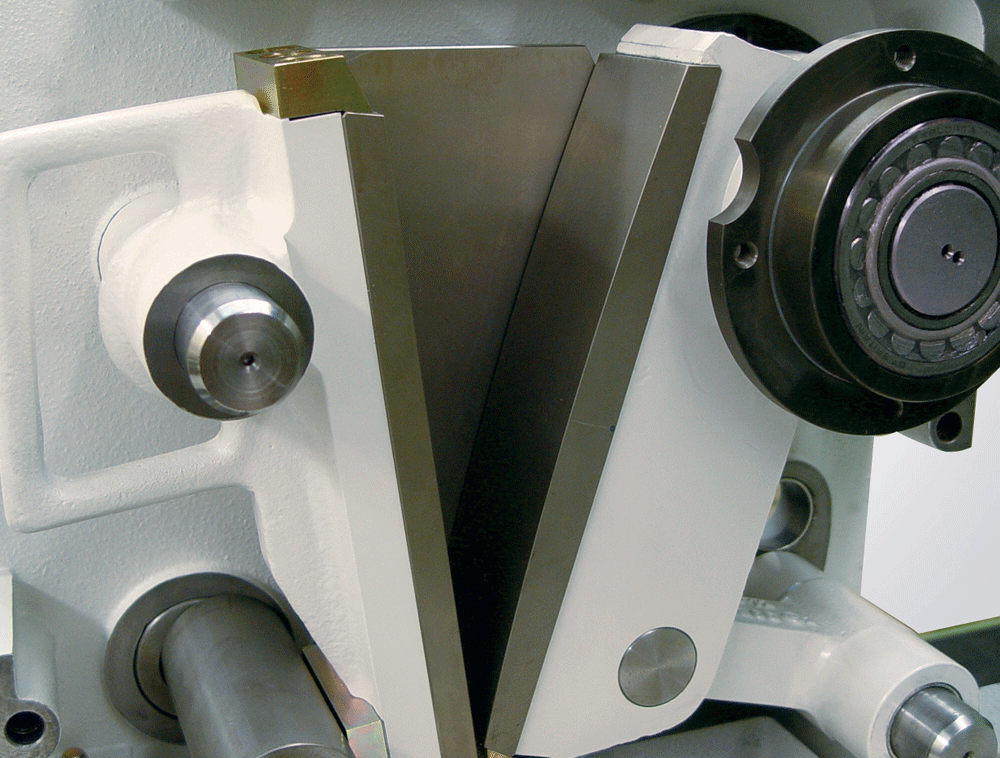

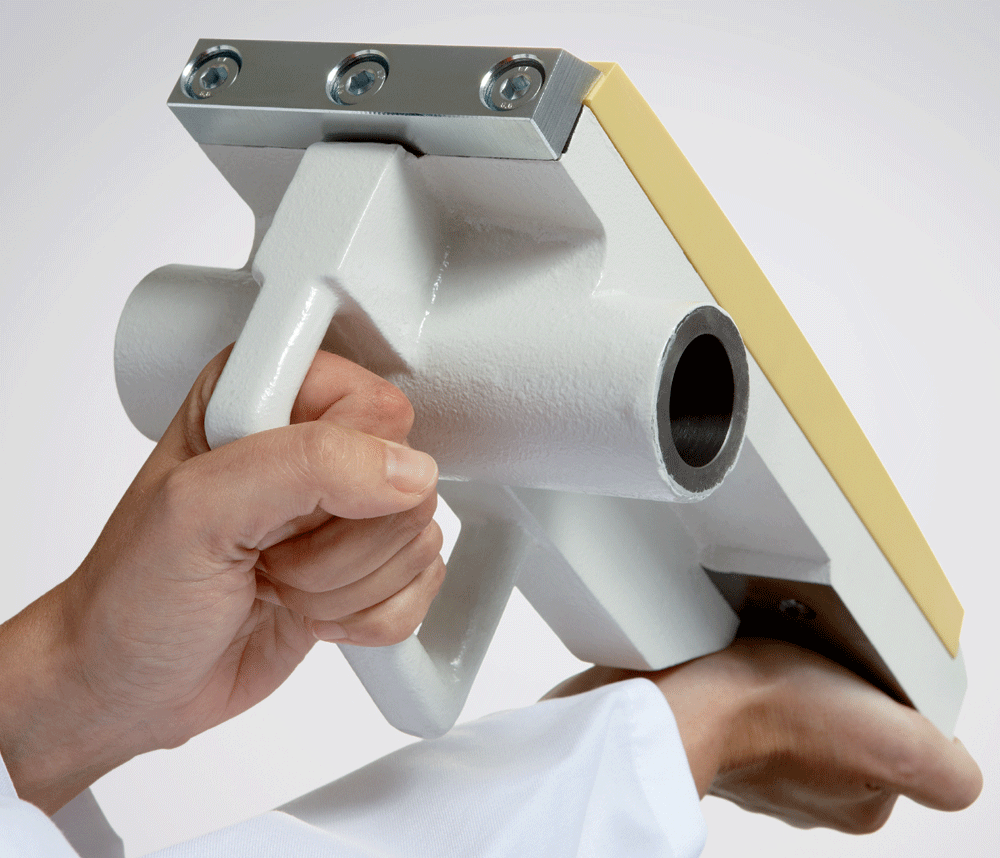

Crushing jaw Grinding chamber

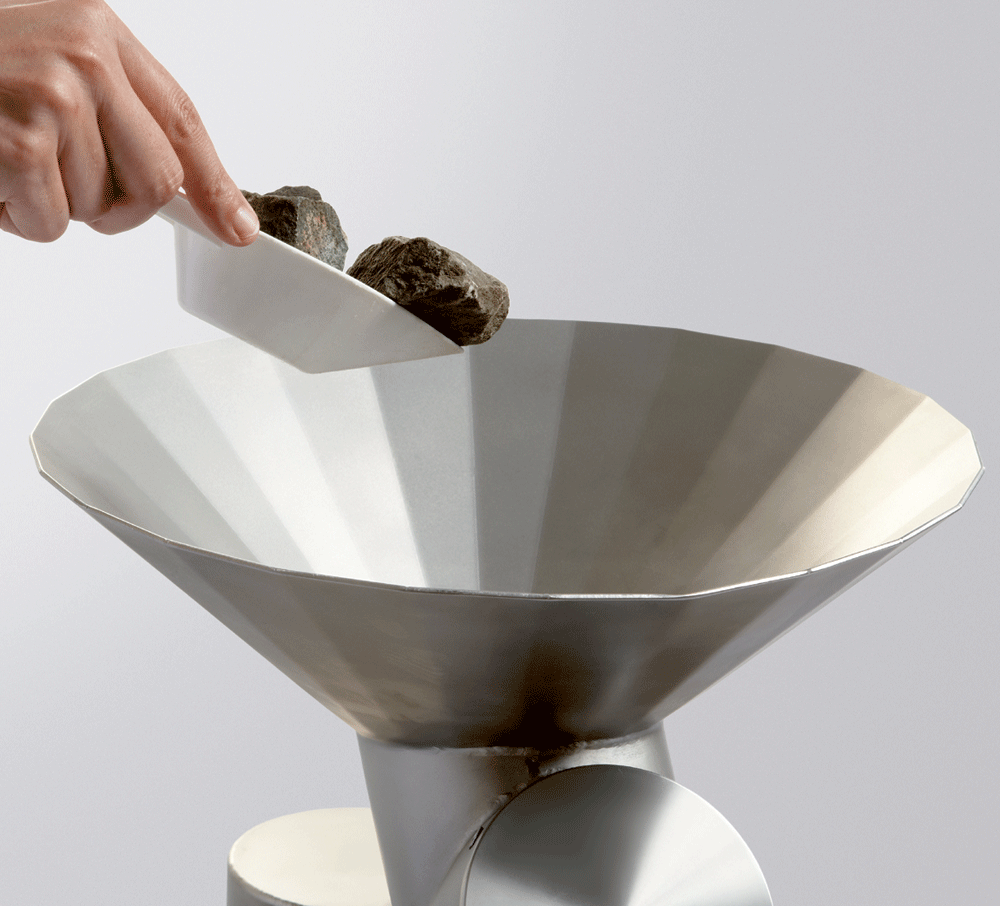

Material feeding Grinding results

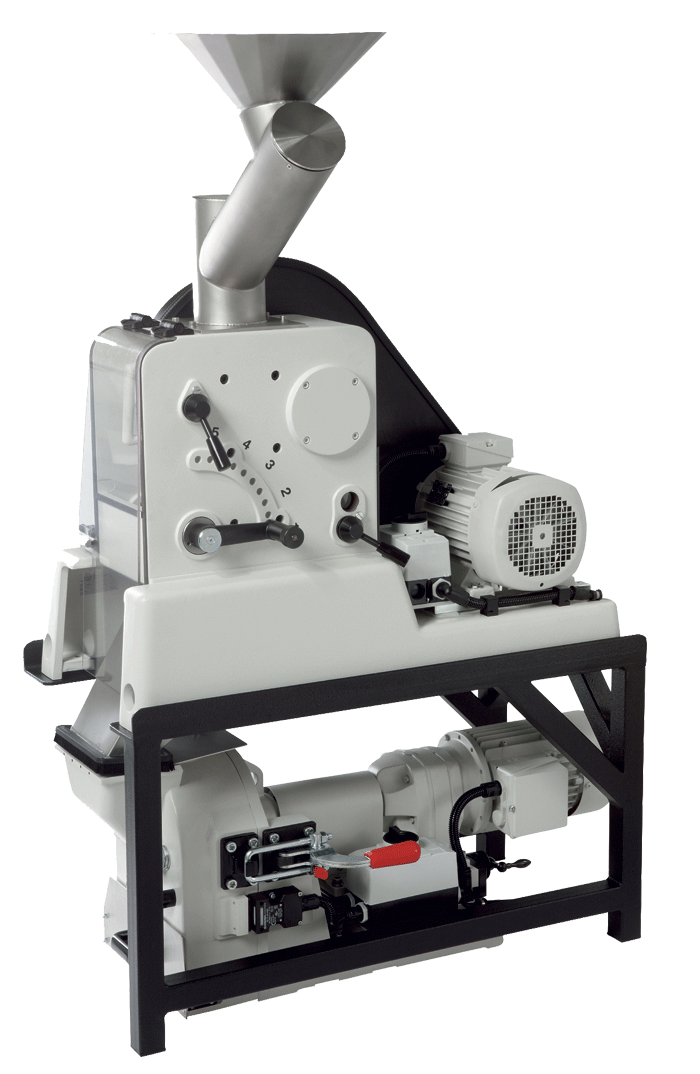

  [Jaw Crusher & Disk Mill Combination]
Feeding
Jaw crusher 분쇄
Jaw crusher & Disk mill combi. Disk mill 분쇄


  [장비특징]
1.  Very fast, uniform comminution
2.  Feed size up to 95 mm, final fineness 1~15mm
3.  Extremely fast and easy cleaning
4.  Extremely robust even for very hard materials
5.  Especially simple crushing jaw removal
6.  Safe and dust-free operation
7.  Adaptable crushing jaw kinematics for higher final fineness


  [SPECIFICATION]
Technical Data    PULVERISETTE 1 Jaw Crusher
   Model I  Model II
Working principle   Pressure  Pressure
Optimal for material type   Hard, medium-hard, brittle  Hard, medium-hard, brittle
Max. feed size   60 mm  95 mm
Min. sample quantity   20 ml  20 ml
Max. throughput   140 kg / h  200 kg / h
Final fineness   1 ~ 15 mm  1 ~ 15 mm
Feeding   Batchwise / continuous  Batchwise / continuous
Grinding part   Fixed and movable crushing jaws  Fixed and movable crushing jaws
Eccentric oscillations   308 movements / min  308 movements / min
Electrical details   400V / 3~, 50 ~ 60 Hz, 1,450 watt  400V / 3~, 50 ~ 60 Hz, 2,780 watt
Motor shaft power   1.1 kW  2.2 kW
Weight   177 kg  205 kg
Dimensions (W x D x H)   400 x 800 x 800 mm  400 x 800 x 800 mm
