PULVERISETTE 0 Micro Mill Cryo-box for Cryogenic grinding Mortar and Grinding ball Vibratory Sieve Shaker ANALYSETTE 3 SPARTAN

[Ordering Information] Cat. # 제 품 명   00.6020.00 PULVERISETTE 0 Vibratory Micro Ball Mill 견적요청 독일 Fritsch 제품의 Vibratory Ball Mill 건식/습식 샘플 모두 가능하며, 최종 입도 10 um 수준까지 샘플처리 가능 10 ml 이하의 소량 샘플 전용 Ball mill Moist sample, temperature-sensitive sample 처리시 용이 Grinding 및 Sieving 모두 가능 :   - Sieve shaker 로서 사용가능 (Vibratory sieve shaker) [Impact & Friction 과정]  ① Grinding ball 과 sample 의 1차적인 impact 에       의한 milling  ② Grinding ball 의 tumbling motion 에 의해서,       1차 milling 된 fine sample 의 friction (마찰) 작용에       의해서 2차 milling     [주요 기능] Mortar 의 상하 Oscillation (진동)에 의해서 Bowl 과 Ball 사이의 impact 및 마찰을 통한 milling. - 상하 운동 높이 (Oscillation amplitude): 1~3 mm - 진동수 (Oscillation number): 3,000 ~ 3,600회 / min Dry, wet sample 뿐만 아니라 Cryogenic grinding 가능 Cryogenic grinding (저온 milling) - Cryo-box 이용: grinding set를 넣고 liquid nitrogen 을   채운 후 grinding 수행 - Soft, slightly oily, fatty or moist materials 6종류 재질의 Mortar 사용 - Agate - Sintered corundum - Zirconium oxide - Stainless steel - Hardened steel - Hardmetal tungsten carbide 다양한 크기 및 재질의 Grinding Ball 사용 - 50 mm, 70 mm 최대 Sample 처리량: 10 ml 최소 Sample 처리량: 1 ml Max. feeding size: 5 mm   [추가기능] Sieve 를 장착 하여 Vibratory sieve shaker로 사용가능 Solid sample: 32 um ~ 63 um Suspension sample: 20 um ~ 10 mm

[Application]
Chemical analysis	Electron microscopy
Environmental research	Soil samples, comminution of botanical materials  - also possible deep frozen
Pharmaceuticals and medicine	Ophthalmological agents, gels, creams, extracts, drugs, pastes,  dragees, tablets
Forensic analysis	Teeth, bones
Biotechnology	Tissue samples, botanical matter
Material synthesis	Pigments, precious materials, new materials
RoHS	Mobile phone cricuit boards, mobile phone cameras,  mobile phone LCD glass panels, mobile phone keypads,  electronic chips, LCD diffusion panels

[장비특징]
1.	Grinding and sieving in one unit
2.	Agglomeration phenomena avoided
3.	Ergonomically positioned membrane keyboard IP65, splash-proofed
4.	Recyclable plastic housing
5.	Convertible for cryogenic grinding
6.	Window for observing the grinding progress
7.	Digital timer
8.	Standard equipment includes grinding head (included in price)
9.	Accessories: Mortars and grinding balls in 6 different materials (ordered separately)
10.	Grinding bowl oscillations 3,000 ~ 3,600 oscillations / min at 1 ~ 3 mm amplitude
11.	CE mark

[SPECIFICATION]
Technical Data	PULVERISETTE 0 Vibratory Micro Mill
Working principle	Impact force
Optimal for material type	Medium-hard, brittle, temperature-sensitive, moist
Grinding bowl size
Grinding ball diameter	50 ~ 70 mm
Max.feed size	5 mm
Min. sample quantity	1 ml
Max.sample quantity	10 ml
Final fineness	10 um
Typical grinding time down to analytical fineness	10 min
Cryogenic grinding	Yes
Grinding process	Dry / wet
Grinding bowl oscillations per minute	3,000 ~ 3,600 at 1 ~ 3 mm amplitude
Electrical details	100 ~ 240 V, 50 ~ 60 Hz
Motor power	50 W
Weight	21 kg
Dimensions (W x D x H)	370 x 400 x 200 mm

[ACCESSORIES INFORMATION]

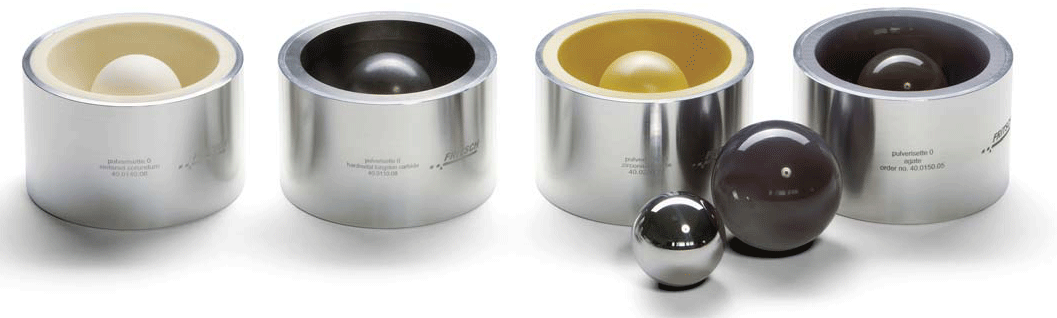

Material Data for Mortars / Grinding Balls
Material	Main component of the material	Density g / cm3	Abrasion resistance	Use for material to be ground
Agate	SiO2	2.65	Good	Soft to medium-hard samples
Sintered corundum	Al2O3	3.8	Faired good	Medium-hard, fibrous samples
Zirconium oxide	ZrO2	5.7	Very good	Fibrous, abrasive samples
Stainless steel	Fe-Cr-Ni	7.8	Fairly good	Medium-hard, brittle samples
Hardened steel	Fe-Cr	7.9	Good	Hard, brittle samples
Hardmetal tungstem carbide	WC	14.89	Very good	Hard, abrasive samples
