LABORETTE 27 Sample Divider Sample bottle Sample bottle Dividing head Dividing funnel

[Ordering Information] Cat. # 제 품 명   27.1420.00 LABORETTE 27 Sample divider 견적요청 독일 Fritsch 제품의 파우더 샘플 Divider Rotation speed를 이용하여 샘플을 일정한 양으로 bottle에 분주 및 분리     [주요 기능] Bottle의 rotation을 이용한 정확한 샘플 분주 - Bottle 간의 정확성, 재현성 우수 Rotational Speed: 100 rpm 8 channel, 10 channel, 30 channel - 동시에 bottle 8 ea, 10 ea, 30 ea 장착가능 - Dividing head 만 교체하여 channel 변경 최소 15 ml ~ 500 ml bottle 까지 사용가능 Total volume 최대 4,000 ml까지 가능 Liquid sample 도 가능 결합, 분리, 세척이 용이한 구조 Sample feeder "LABORETTE 24" 와 연동하여 사용가능

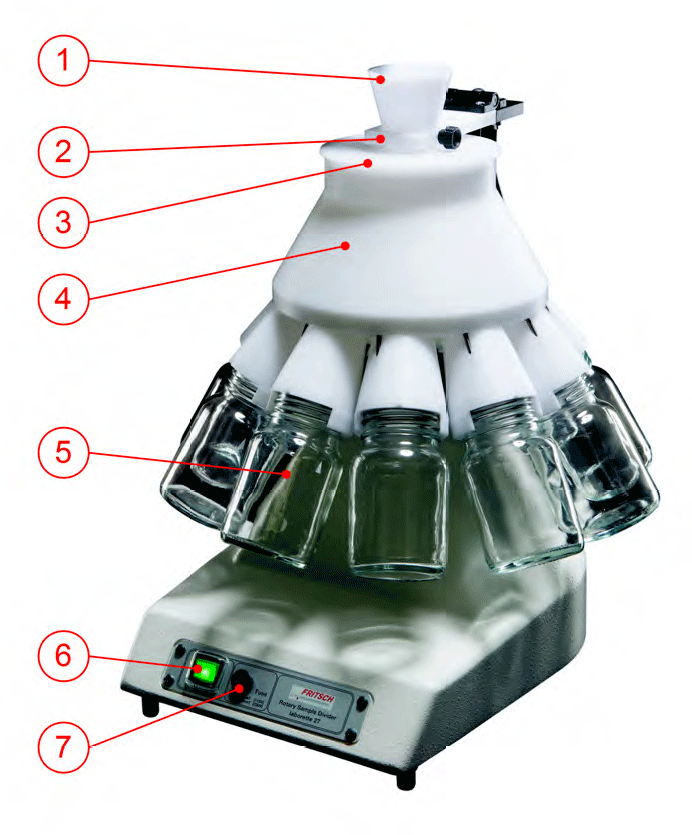

[Structure for Sample Divider]
	Basic Structure Funnel Funnel holder Dividing head lid Dividing head Sample bottles Main switch Fuse

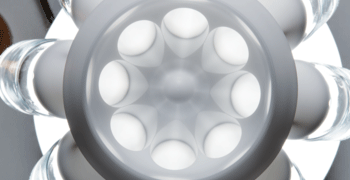

[Feature of Dividing Head]
Division ratio	Division 1:8	Division 1:10	Division 1:30
Number of possible subsamples	8	10	30
Dividing head
Materials	POM plastic or aluminium	POM plastic or aluminium	POM plastic or PTFE - coated aluminium
Max. feed particle size	10 mm	10 mm	2.5 mm
Max. sample quantity	4,000 ml	2,500 ml	300 ml
Useful capacity of sample bottles	25, 250*, 500* ml	25, 250*ml	15, 20, 30 ml
Division	Dry/wet	Dry/wet	Dry/wet
* Thread of sample bottles: GL 55, other threads for your own sample containers on request.

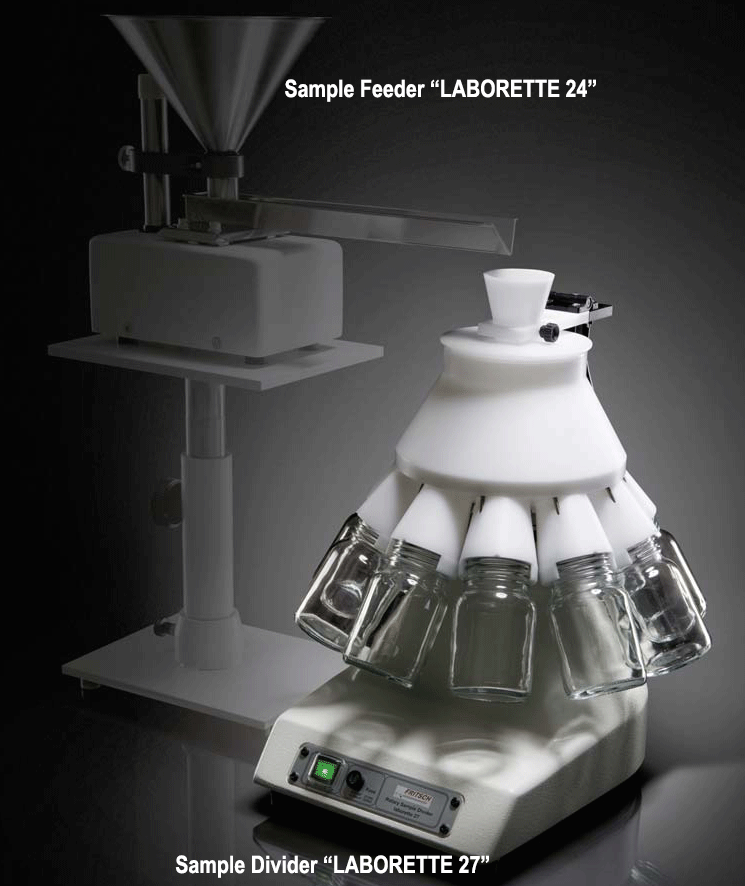

[Sample Divider + Sample Feeder]

Sample divider "LABORETTE 27" 와 Sample feeder "LABORETTE 24" 연동하여 사용하면 더욱 편리하게 샘플을 분리 및 분주할 수 있다.

[장비특징]
1.	Compact basic instrument, combinable with 6 different dividing heads
2.	Easy cleaning due to removable dividing head
3.	Up to 3,000 division steps per minute
4.	Variable division ratios
5.	Division of dry samples and suspensions without modification of the instrument
6.	Maintenance-free drive motor with slipping clutch, rotational speed 100 rpm
7.	Recyclable, heavy-duty cast aluminium housing
8.	Glass collecting vessels from 15 ml to 500 ml
9.	Quick clamp device for sample bottles 250 ml and 500 ml
10.	Adapted sample division with the Vibratory Feeder LABORETTE 24

[SPECIFICATION]
Technical Data	LABORETTE 27 Sample Divider
Division ratio	1:8, 1:10, 1:30
Number of possible sub-samples	8, 10 or 3
Division	wet/dry
Materials	POM Plastic, aluminium or PTFE-coated aluminium
Capacity of sample bottles	15, 20, 32, 30, 250, 500 ml
Max. feed particle size	10 mm, 2.5 mm
Max. sample quantity	4,000, 2,500, 300 ml
Maintenance-free drive motor	Rotational speed 100 rpm
Electrical details	230 V/1~, 50-60 Hz, 90 Watt
Weight	7.7 kg
Dimensions (W x D x H)	270 x 450 x 460 mm
