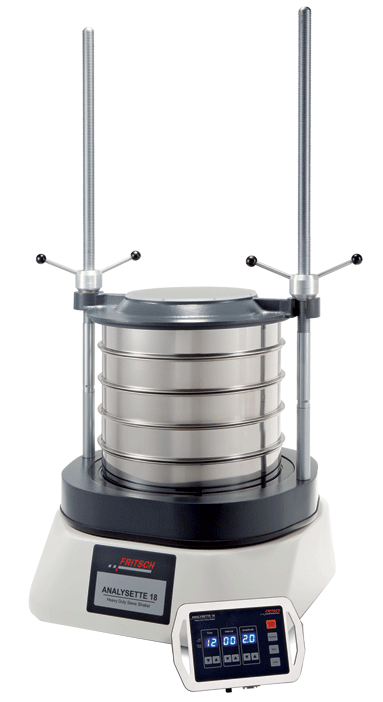

ANALYSETTE 18 Vibratory Sieve Shaker Remote control

[Ordering Information] Cat. # 제 품 명   18.3020.00 ANALYSETTE 18 Vibratory Sieve Shaker 견적요청 독일 Fritsch 제품의 Vibratory Sieve Shaker Dry sieving, Wet sieving 가능하여 sieving 범위가 광범위. 최대 직경 450mm Sieve 장착가능한 대용량 모델 Automatic sieving amplitude contorl: Precision sieving     [주요 기능] 최대 직경 450mm Sieve 장착가능한 대용량 모델 - 450mm, 400mm, 350mm, 315mm, 300mm,   200mm, 8" sieve 장착가능 Shaking sieve system with Electromagnetic drive - Sieve stack 의 vertical oscillation 의 정확한 조절 - 측정범위: 최대 15 kg, 20 um ~ 125 mm 까지 가능 최대 12 test sieve (65mm height)까지 동시 사용 가능 Digital display - Sieving time, amplitude, interval, program AUTOSIEVE software: RS232 interface 이용한 PC control AMPCONTROL: Auto amplitude control - 정확한 Sieving Amplitude 조절 - 재현성이 있는 sieving 결과를 얻을 수 있음 - 0.1 ~ 2 mm 광범위한 Sieving range - Dry sieving - Wet sieving

[Accessories]

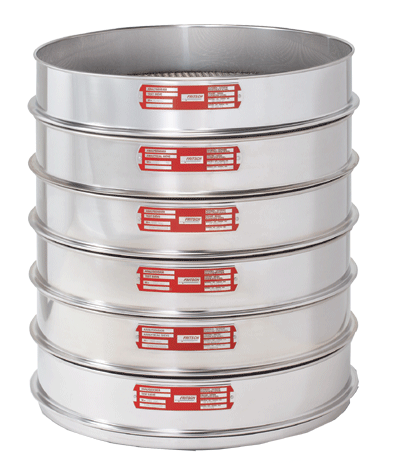

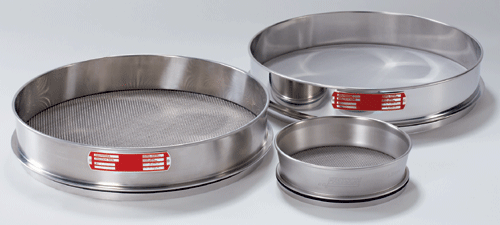

	Sieve - For Dry and wet sieving - 20 um ~ 125 mm - Alloyed stainless steel		Sieve-stack

[SPECIFICATION]
Technical Data	ANALYSETTE 18 Vibratory Sieve Shaker
Method of analysis	Sieving
Dry sieving  Measuring range   Max. sample quantity  Sieving time	20 um ~ 125 mm  15 kg  5 ~ 60 min
Wet sieving  Measuring range   Max. sample quantity  Sieving time	20 um ~ 20 mm  15 kg  5 ~ 60 min
Max. weight of sieve stack	42 kg
Amplitude	0.1 ~ 2 mm
Amplitude control	automatic
Sieve diameter	300 mm, 315 mm, 350 mm, 400 mm, 450 mm,  12“– 18“; 200 mm and 8“ (adapter required)
Max. number of sieves per sieve stack	12 (65 mm height)
Max. height of sieve stack	845 mm
Automatic sieve analysis with evaluation software AUTOSIEVE	Yes
Testing instrument calibration according to ISO 9001	Yes
Interface	Yes
Intermittent mode	Yes
Memory for 99 parameter combinations	Yes
Electrical details	230 V/1~, 50 – 60 Hz, 200 watt
Weight	135 kg
Dimensions (W x D x H)	580 x 590 x 1300 mm
