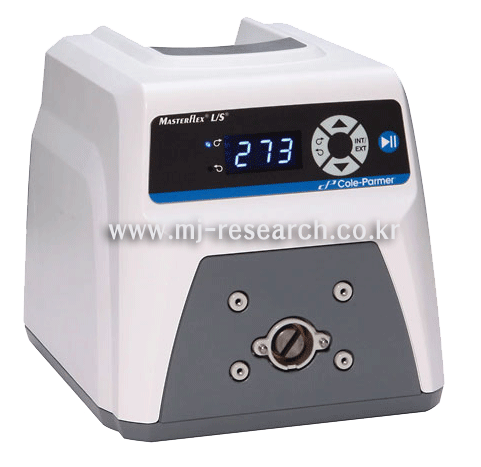

07528 L/S Analog Console Drive 07528 L/S Analog Console Drive with EasyLoad II Pump Head

[Ordering Information] Cat. # 제 품 명   07528-10 Mflex Analog Console Drive. 6 ~ 600rpm 견적요청 07528-20 Mflex Analog Console Drive. 3 ~ 300rpm 견적요청 07528-30 Mflex Analog Console Drive. 1 ~ 100rpm 견적요청 Motor Speed 조절 및 LED display 등 가장 기본적인 기능을 갖춘 Masterflex 정량펌프 정량펌프는 Pump Drive, Pump Head, Tubing 3가지로 구성 - 실험용도에 따라서 Pump head, Tubing 의 구성이 달라집니다.   [주요 기능] Flow rate: 0.06 ~ 3,400 ml / min with L/S tubing Motor speed LED digital display Forward, reverse 회전 모두 가능 모델별 Motor rpm - 07528-10 : 6 ~ 600 rpm - 07528-20 : 3 ~ 300 rpm - 07528-30 : 1 ~ 100 rpm 모델별 장착 가능한 Pump head 수 - 07528-10 : 2 - 07528-20 : 2 - 07528-30 : 4 External control 가능 실험 Application에 맞는 Pump head 및 tubing 선택

제품 동영상	동영상 자료실 가기
Masterflex L/S Peristaltic Pump
Masterflex L/S and I/P Open-Head Interlock Sensor

[Pump Head]
1. L/S Easy-Load Pump Head
	Flow capacity: 0.001 ~ 2,300 ml / min Max. rpm: 600 Number of rollers: 3 Multichannel pumping Housing material - Polysulfone (PSF): general-purpose - Polyphenylene sulfide (PPS): corrosive liquid, vapors Roller / Rotor materials - Plated cold-rolled steel (CRS): general-purpose - 300-series stainless steel (SS): corrosive fluids Weight: 0.9 kg
Polysulfone housing (PSF)

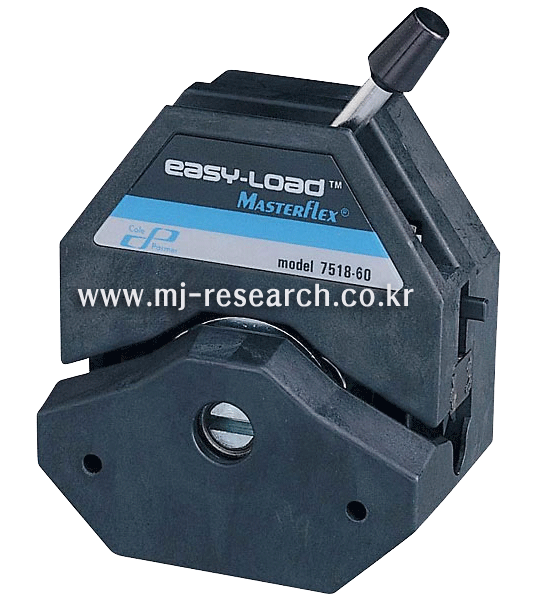

Polyphenylene sulfide housing (PPS)
2. L/S Easy-Load II Pump Head
	Flow rate: 0.001 ~ 2,900 ml / min Max. rpm: 600 Number of rollers: 4 - reduce pulsation - increase pressure performance, stability Multichannel pumping Housing materials - Polyphenylene sulfide (PPS): corrosive liquid, vapors Roller / Rotor materials - Plated cold-rolled steel (CRS): general-purpose - 300-series stainless steel (SS): corrosive fluids
Polyphenylene sulfide housing (PPS)

[L/S Pump Tubing Flow Rate Information]
1. Precision Pump Tubing
rpm	L/S 13	L/S 14	L/S 16	L/S 25	L/S 17	L/S 18
6 ~ 600	0.36 ~ 36ml	1.3 ~ 130ml	4.8 ~ 480ml	10 ~ 1,000ml	17 ~ 1,700ml	23 ~ 2,300ml
3 ~ 300	0.18 ~ 18ml	0.65 ~ 65ml	2.4 ~ 240ml	5 ~ 500ml	8.5 ~ 850ml	11.5 ~ 1,150ml
1 ~ 100	0.06 ~ 6ml	0.21 ~ 21ml	0.8 ~ 80ml	1.7 ~ 170ml	2.8 ~ 280ml	3.8 ~ 380ml
2. High-performance Precision Pump Tubing
rpm	L/S 15	L/S 24	L/S 35	L/S 36
6 ~ 600	10 ~ 1,000ml	17 ~ 1,700ml	23 ~ 2,300ml	29 ~ 2,900ml
3 ~ 300	5 ~ 500ml	8.5 ~ 850ml	11.5 ~ 1,150ml	14.5 ~ 1,450ml
1 ~ 100	1.7 ~ 170ml	2.8 ~ 280ml	3.8 ~ 380ml	4.8 ~ 480ml

[L/S Pump Tubing Specification]
1. Precision Pump Tubing
	L/S 13	L/S 14	L/S 16	L/S 25	L/S 17	L/S 18
Inside diameter	0.8 mm	1.6 mm	3.1 mm	4.8 mm	6.4 mm	9.5 mm
Max. pressure	2.7 bar			2.4 bar	1.4 bar	1.0 bar
Max. vacuum	660 mm Hg				510 mm Hg
2. High-performance Precision Pump Tubing
	L/S 15	L/S 24	L/S 35	L/S 36
Inside diameter	4.8 mm	6.4 mm	7.9 mm	9.7 mm
Max. pressure	2.7 bar		2.4 bar	1.4 bar
Max. vacuum	660 mm Hg			610 mm Hg

[Drive Specification]
Model	07528-10	07528-20	07528-30
Flow Capacity (ml/min)	0.36 ~ 3,400 ml	0.18 ~ 1,700 ml	0.06 ~ 580 ml
Drive Speed (rpm)	6 ~ 600 rpm	3 ~ 300 rpm	1 ~ 100 rpm
Number of heads accepted	2	2	4
Reversible direction	Yes
Display	Three-digit LED (speed) display
Overall size (LxWxH)	274 x 212 x 216 mm
Shipping Weight	6.9 kg
