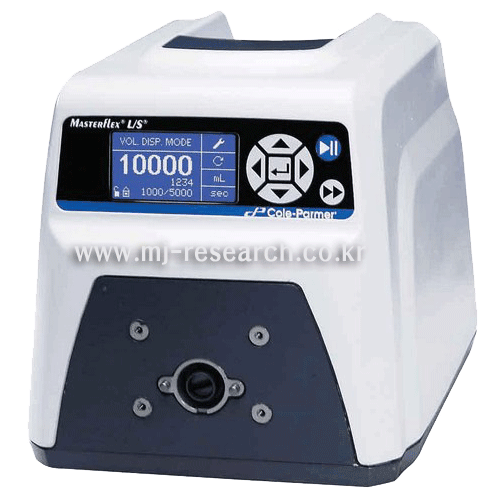

07522 L/S Digital Standard Drive 07522 L/S Digital Standard Drive with EasyLoad II Pump Head

[Ordering Information] Cat. # 제 품 명   07522-20 Mflex Digital Standard Drive.0.1~600rpm 견적요청 07522-30 Mflex Digital Standard Drive.0.02~100rpm 견적요청 Volume dispenser, Timer dispense 등 다양한 기능을 실현하는 최고사양을 갖춘 Masterflex 정량펌프 정량펌프는 Pump Drive, Pump Head, Tubing 3가지로 구성 - 실험용도에 따라서 Pump head, Tubing 의 구성이 달라집니다.   [주요 기능] Flow rate: 0.006 ~ 3,400 ml / min with L/S tubing 4-line Graphical LCD digital display : 정밀한 유속 및 용량의 설정이 가능 - Continuous run: 연속분주 - Volume dispense: 설정용량 분주 - Time dispense: 설정시간 분주 - Copy dispense: 동일용량 반복분주 Membrand keypad 을 통한 프로그래밍 - Tubing size, Flow rate, Flow direction, Flow unit, Motor speed(rpm), Total volume, On/Off time, Dispense(volume/copy/time), Control mode, Prime, Bathch count, Start/stop, Calibration etc... Forward, reverse 회전 모두 가능 모델별 Motor rpm - 07522-20 : 0.1 ~ 600 rpm - 07522-30 : 0.02 ~ 100 rpm 모델별 장착 가능한 Pump head 수 - 07522-20 : 2 - 07522-30 : 4 Prime 기능 내장 Calibration: 샘플종류 및 물성에 따라서 달라지는 유량에 대한 motor speed calibration External control 가능 실험 Application에 맞는 Pump head 및 tubing 선택

제품 동영상	동영상 자료실 가기
Masterflex L/S Peristaltic Pump
Masterflex L/S and I/P Open-Head Interlock Sensor

[Pump Head]
1. L/S Easy-Load Pump Head
	Flow capacity: 0.001 ~ 2,300 ml / min Max. rpm: 600 Number of rollers: 3 Multichannel pumping Housing material - Polysulfone (PSF): general-purpose - Polyphenylene sulfide (PPS): corrosive liquid, vapors Roller / Rotor materials - Plated cold-rolled steel (CRS): general-purpose - 300-series stainless steel (SS): corrosive fluids Weight: 0.9 kg
Polysulfone housing (PSF)
Polyphenylene sulfide housing (PPS)
2. L/S Easy-Load II Pump Head
	Flow rate: 0.001 ~ 2,900 ml / min Max. rpm: 600 Number of rollers: 4 - reduce pulsation - increase pressure performance, stability Multichannel pumping Housing materials - Polyphenylene sulfide (PPS): corrosive liquid, vapors Roller / Rotor materials - Plated cold-rolled steel (CRS): general-purpose - 300-series stainless steel (SS): corrosive fluids
Polyphenylene sulfide housing (PPS)

[L/S Pump Tubing Flow Rate Information]
1. Precision Pump Tubing
rpm	L/S 13	L/S 14	L/S 16	L/S 25	L/S 17	L/S 18
0.1~600	0.006~36ml	0.021~130ml	0.08~480ml	0.17~1,000ml	0.28~1,700ml	0.38~2,300ml
0.02~100	0.001~6ml	0.004~21ml	0.016~80ml	0.033~170ml	0.057~280ml	0.077~380ml
2. High-performance Precision Pump Tubing
rpm	L/S 15	L/S 24	L/S 35	L/S 36
0.1~600	0.17~1,000ml	0.28~1,700ml	0.38~2,300ml	0.48~2,900ml
0.02~100	0.033~170ml	0.057~280ml	0.077~380ml	0.096~480ml

[L/S Pump Tubing Specification]
1. Precision Pump Tubing
	L/S 13	L/S 14	L/S 16	L/S 25	L/S 17	L/S 18
Inside diameter	0.8 mm	1.6 mm	3.1 mm	4.8 mm	6.4 mm	9.5 mm
Max. pressure	2.7 bar			2.4 bar	1.4 bar	1.0 bar
Max. vacuum	660 mm Hg				510 mm Hg
2. High-performance Precision Pump Tubing
	L/S 15	L/S 24	L/S 35	L/S 36
Inside diameter	4.8 mm	6.4 mm	7.9 mm	9.7 mm
Max. pressure	2.7 bar		2.4 bar	1.4 bar
Max. vacuum	660 mm Hg			610 mm Hg

[Drive Specification]
Model	07522-20	07522-30
Flow Capacity (ml/min)	0.006 ~ 3,400 ml	0.001 ~ 580 ml
Drive Speed (rpm)	0.1 ~ 600 rpm	0.02 ~ 100 rpm
Number of heads accepted	2	4
Reversible direction	Yes
External control - Input	Yes
External control - Output	Yes
Display	Four-line graphical LCD display
Overall size (LxWxH)	274 x 212 x 216 mm
Shipping Weight	5.9 kg
