VC900

[Ordering Information] Cat. # 제 품 명   VC900 VC900 Vacuum control unit 견적요청 Vacuum control unit Vacuum control system [진공조절 시스템]     [주요 기능] 최대 진공 - 2 mbar KNF Vacuum Control System: - 시스템구성: Vacuum controller + operation unit - 원하는 진공도 유지: 최대 2 mbar까지 - 진공유량 조절 : 10 L/min ~ 50 L/min Wireless Vacuum Control System - Control unit과 operationl unit이 분리되어 무선조절 Compact design, space-saving   [Application] Pumping of corrosive gases and vapors Rotary evaporator Filtration Laboratory reactor Vacuum concentrator Gel dryer Vacuum oven Concentration, drying of many common solvents

제품 동영상	동영상 자료실 가기
KNF Pumps: Application - Specific Design

[SPECIFICATION]
Technical Data	VC900
Operaing Unit
Measuring limit	0 ~ 1,100 mbar
Housing material	Plastic
Power supply	Power cord, cable length 150 cm
Accuracy of measurement	±1 mbar
Interface	Mini-USB
Voltage	100 ~ 240 V
Dimension (WxHxD)	101 x 181 x 67 mm
Control Unit
Hose connection	- for gas in : ID10, PVDF  - for gas out: ID10, PVDF  - for venting: ID4, nickel-plated brass
Dimension (WxHxD)	155 x 109 x 60 mm
Total weight	1.2 kg

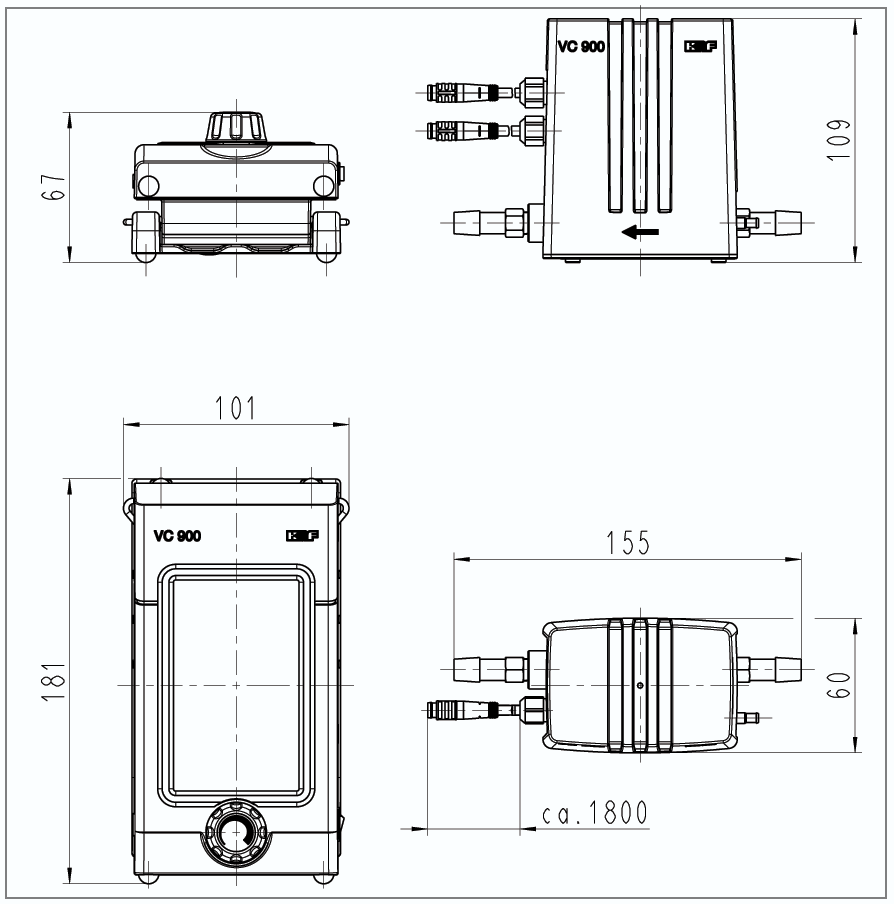

[VC900 - Diagram]
