SC920 SC950

[Ordering Information] Cat. # 제 품 명   SC920 SC920 Chemistry diaphragm vacuum pump 견적요청 SC950 SC950 Chemistry diaphragm vacuum pump 견적요청 최대 2 mbar 까지 진공이 가능한 Diaphragm vacuum pump Vacuum control system [진공조절 시스템] Solvent-recovery experiment, Rotary evaporator 사용시 가장 적합한 모델     [주요 기능] 최대 진공 - 2 mbar, 1.5 torr Pumping speed (유량조절 시스템) - 6 ~ 20 L/min (SC920) - 10 ~ 50 L/min (SC950) Four-stage: 2 mbar의 진공까지 가능하도록 함 (SC950) Pump head 재질: PPS Diaphragm 재질: PTFE (high chemical resistance) Valve 재질: FFPM Separator: Plastic-coated glass 100% oil-free로 유체의 오염없는 이송, 배기, 압축 내화학성 Full Teflon 재질로 부식성이 강한 유체사용에 이상적임. KNF Vacuum Control System: - 시스템구성: Pump + Vacuum controller +    Condenser + Separator. - Pressure control: 원하는 진공도 유지 - New Auto-distillation mode 내장 - 다양한 Vacuum control program 가능 - 유기용매 회수율이 매우 좋음 - 환경친화적 Remote control unit (option) Integrated gass ballast valve Compact design, space-saving Very low vibration   [Application] Pumping of corrosive gases and vapors Rotary evaporator Filtration Laboratory reactor Vacuum concentrator Gel dryer Vacuum oven Concentration, drying of many common solvents

제품 동영상	동영상 자료실 가기
SC950 Wireless Vacuum Pump System

[SPECIFICATION]
Technical Data	SC920	SC950
Flow rate at atm	6 ~ 20 L/min	10 ~ 50 L/min
Ultimate vacuum (abs.)	2 mbar, 1.5 torr	2 mbar, 1.5 torr
Materials of pump head	PPS	PPS
Materials of diaphragm	PTFE-coated	PTFE-coated
Materials of valve	FFPM	FFPM
Separators	Plastic-coated glass	Plastic-coated glass
Size of Separators	500 ml	500 ml
Hose connection	ID 10 mm	ID 10 mm
USB connection	Mini-USB	Mini-USB
Voltage	230 V	230 V
Gas ballast valve	Yes	Yes
Rated motor power	135 W	150 W
Dimension (WxHxD)	366 x 423 x 294 mm	246 x 487 x 313 mm
Weight	15.2 kg	14.5 kg

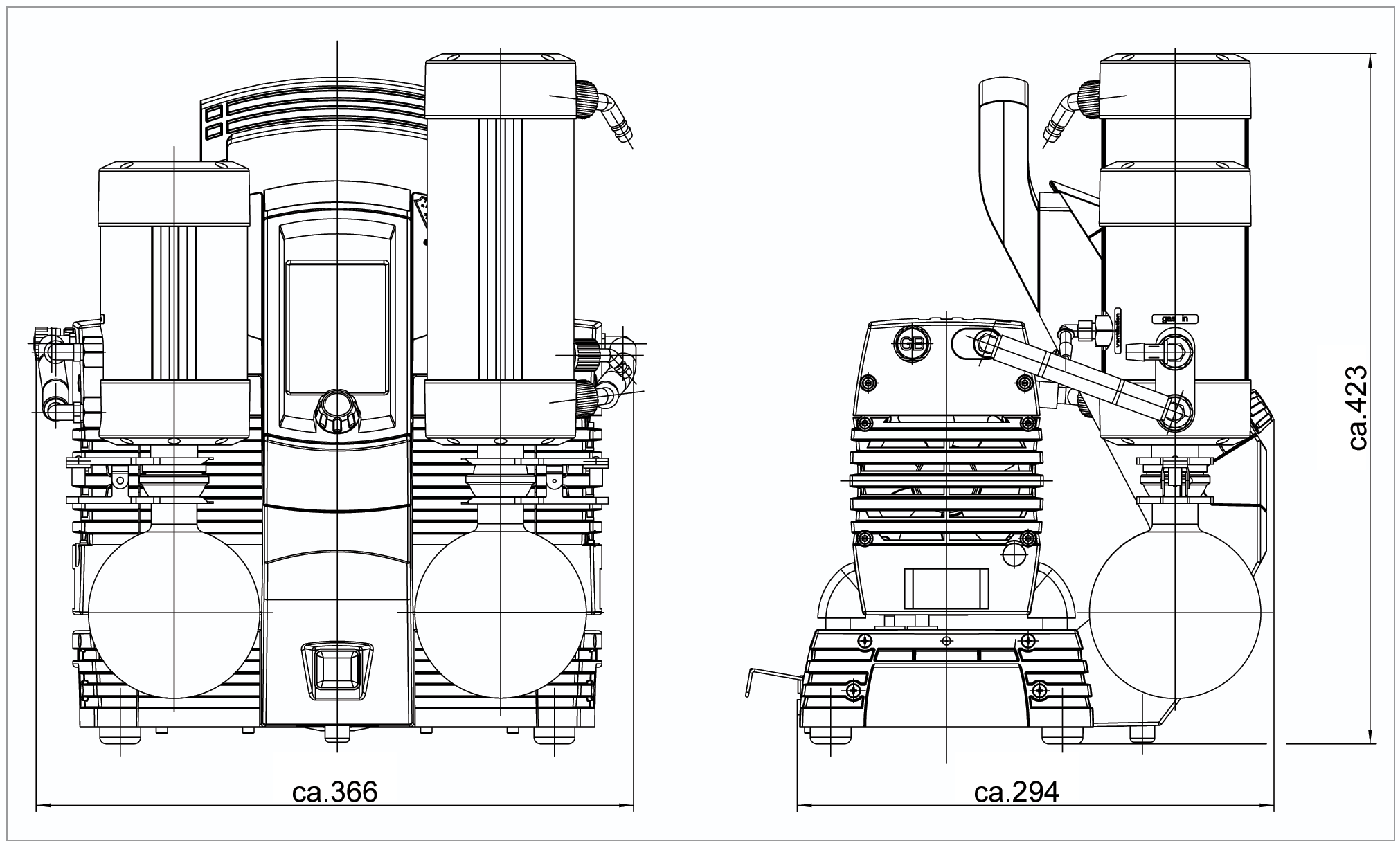

[SC920 series - Diagram]

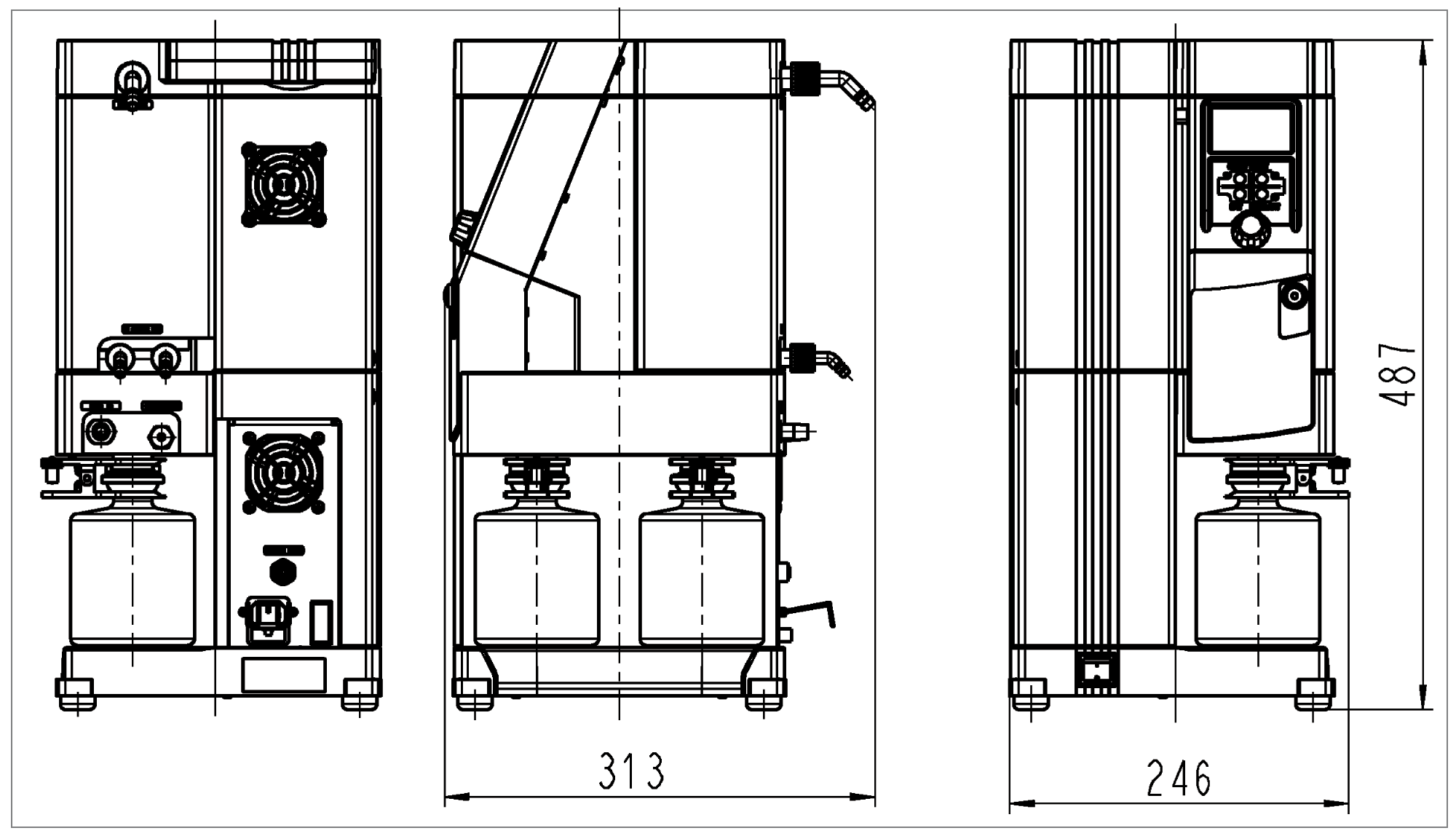

[SC950 series - Diagram]
