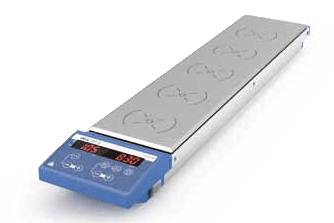

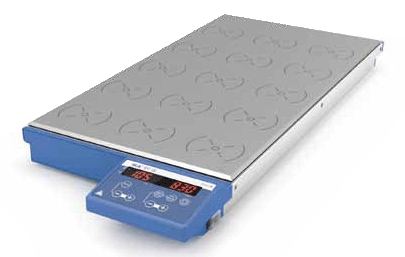

RT 5 Multi-Position Stirrer RT 10 Multi-Position Stirrer RT 15 Multi-Position Stirrer

[Ordering Information] Cat. # 제 품 명   3690600 RT5 Multi-position stirrer with heating 견적요청 3691100 RT10 Multi-position stirrer with heating 견적요청 3692600 RT15 Multi-position stirrer with heating 견적요청   [주요 기능] 5 ~ 15개의 sample를 동시에 heating, stirring 가능한 magnetic stirrer Plate heating 은 120℃, sample heating은 70℃ 최대 1,000 rpm 까지 stirring Reverse rotation 가능 온도 및 stirring 속도 LED digital display 실험자의 화상을 방지하기 위한 Hot top indicator

[SPECIFICATION]
Technical Data	RT 5	RT 10	RT 15
Max. stirring quantity(H2O)	2 L	4 L	6 L
Max. stirring quantity per stirring position (H2O)	0.4 L	0.4 L	0.4 L
Number of stirring positions	5	10	15
Speed range	0 ~ 1,000 rpm	0 ~ 1,000 rpm	0 ~ 1,000 rpm
Speed display	LED	LED	LED
Speed adjustment	10 rpm steps	10 rpm steps	10 rpm steps
Max. stirring bar length	30 mm	30 mm	30 mm
Heat output	175 W	375 W	580 W
Temperature range heatig plate	RT – 120 °C	RT – 120 °C	RT – 120 °C
Max. temperature medium	70 °C	70 °C	70 °C
Temperature display	LED	LED	LED
Plate material	Aluminium alloy	Aluminium alloy	Aluminium alloy
Plate dimension	110 x 495 mm	180 x 495 mm	270 x 495 mm
General Data
Dimensions (W x D x H)	120 x 610 x 60 mm	190 x 610 x 60 mm	280 x 610 x 60 mm
Weight	4 kg	7.5 kg	10.5 kg
Voltage	100 - 240 V	100 - 240 V	100 - 240 V
Frequency	50/60 Hz	50/60 Hz	50/60 Hz
