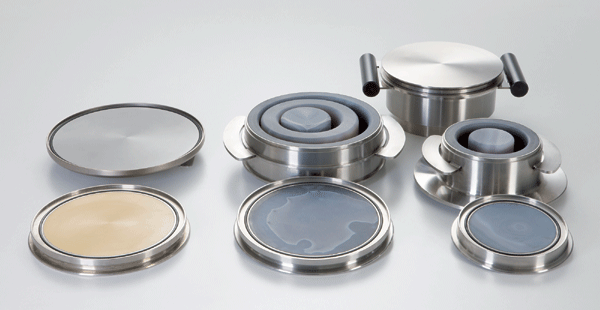

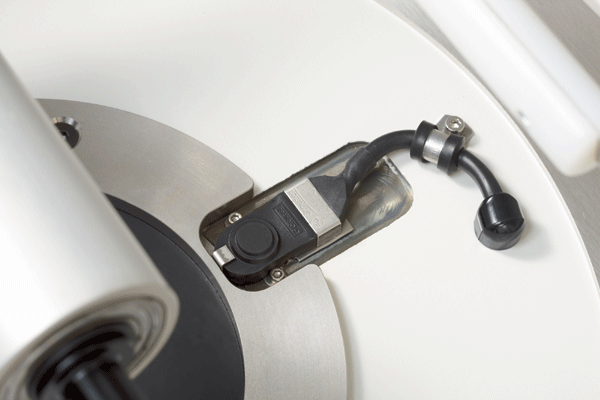

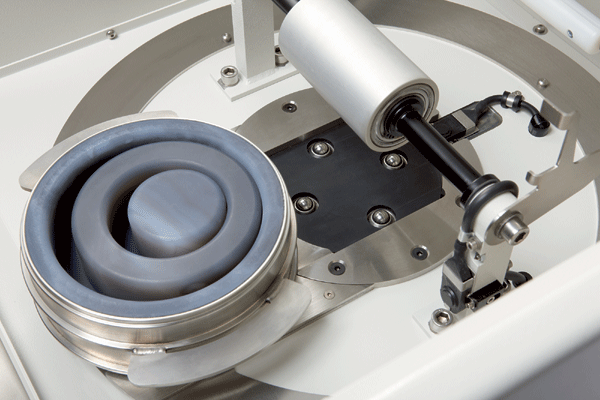

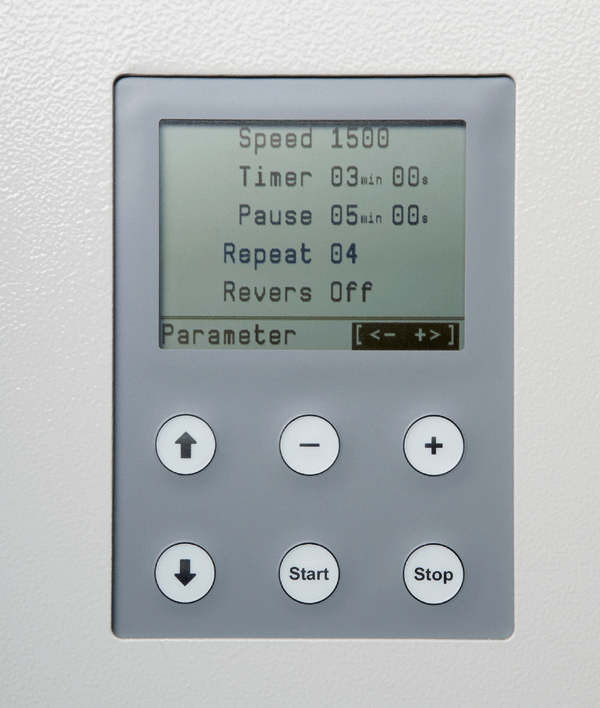

PULVERISETTE 9 Cup mill Grinding element Safety switch for Grinding element LCD display Automatic recognition for grinding element

[Ordering Information] Cat. # 제 품 명   09.5000.00 PULVERISETTE 9 Vibrating Cup Mill 견적요청 독일 Fritsch 제품의 강력한 Vibrating Cup Mill Grinding element (링, 퍽)을 이용한 10 ~ 20 um 이하로 분쇄하는 강력한 방법     [주요 기능] Grinding element (링, 퍽)을 이용한 샘플분쇄 - 분쇄용기 내부의 링과 퍽의 원형 수평진동에 의한   샘플의 impact, 마찰력, 압력에 의한 분쇄 12mm 이내의 샘플을 수분이내에 20um이하로 분쇄 Variable speed: 600 ~ 1,500 rpm 50ml, 100ml, 250ml 처리 다양한 재질의 Grinding element - Tempered steel - Chromium-free steel - Hardmetal tungsten carbide - Agate - Zirconium oxide Automatic recognition for grinding element - Agate, Zirconium oxide재질 사용시 detect가 자동으로   인식하여 회전속도를 독립적으로 감소시킴 Safe operation Easy cleaning - Grinding element의 분리 및 결합 용이

제품 동영상	동영상 자료실 가기
Vibrating Cup Mill - Pulverisette 9

[Grinding element fixing]

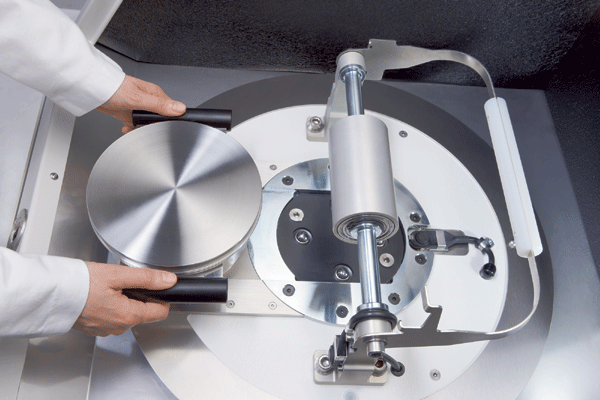

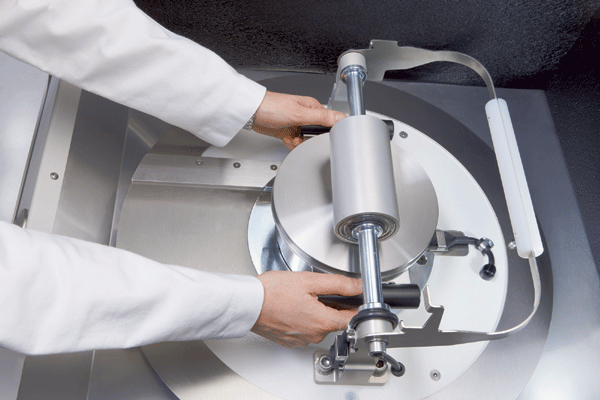

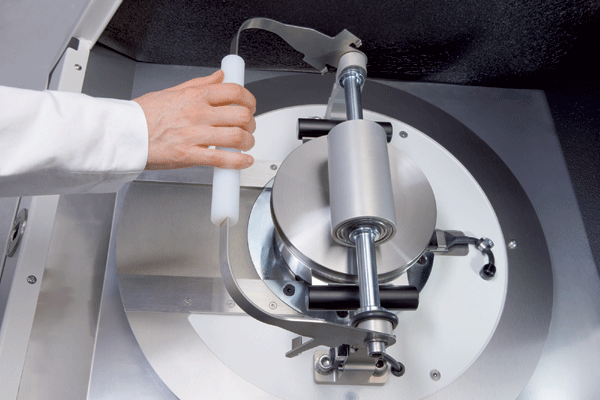

Fixing1	Fixing2	Fixing3
Grinding element 가 장비의 정확한 위치에 장착이 될수 있도록 설계 신속하고 안전한 Clamping이 될수 있는 구조 정확한 장착이 되었는지 자동으로 인지 실험자가 안전하게 실험할 수 있도록 설계

[Application]
Mining	For processing coal, ores or minerals for physical or chemical analysis
Metallurgy	For grinding blast furnace slag or cast iron samples to determine additives
Ceramics industry	For grinding rock samples to produce raw powder to determine CaCO3- and MgO-content or clinkers to study the constancy of the mineralogical structure
Agriculture andenvironment	For preparing samples for chemical analysis of soils, sludges or vegetable samples
Infrared and X-ray fluorescence analysis	For preparing samples in a short grinding time without contamination due to undesired abrasion

[장비특징]
1.	More power with new drive concept
2.	Extra-fast grinding with up to 1500 rpm
3.	Precise adjustment of rotational speed, grinding time and pause periods
4.	Programming and storage of grinding cycles
5.	Self-explanatory multilingual menu navigation
6.	Optimised tensioning of grinding set with anti-rotation lock
7.	Especially safe hood locking
8.	Complete soundproof lining

[SPECIFICATION]
Technical Data	PULVERISETTE 9 Vibrating Cup Mill
Working principle	Impact
Optimal for material type	Hard, medium-hard, brittle, fibrous
Bearings	Ball- and cylindrical roller bearings
Equipment	Instrument without grinding set
Max. feed size (depends on material)	12 mm
Min. sample quantity	10 ~ 20 ml
Max. sample quantity	250 ml
Final fineness	10 ~ 20 μm
Feeding	Batchwise
Grinding parts	Grinding set with grinding puck and impact ring
Motor speed	600 ~ 1500 rpm
Useful capacity	50, 100 or 250 ml
Electrical details	10 ~ 120 / 200 ~ 240 V  50 ~ 60 Hz
Motor power	1.200W
Weight	267 kg
Dimensions (W x D x H)	770 x 760 x 1160 mm
